Detalhes do Produto

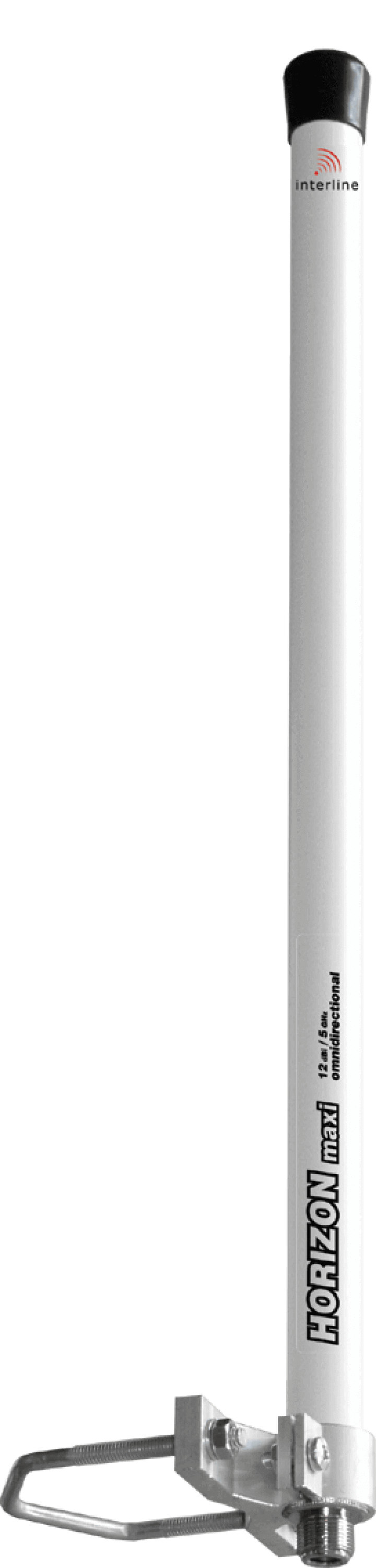

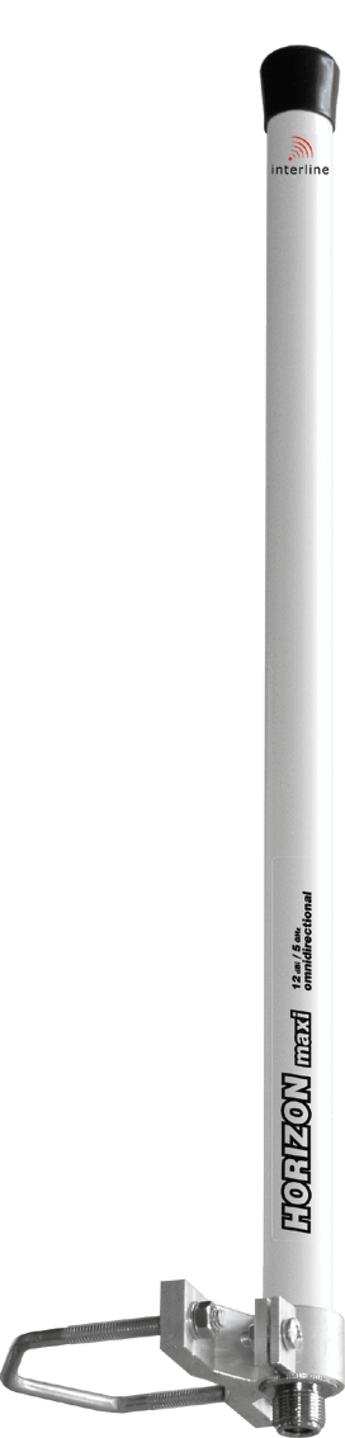

Omnidirectional antenna of the popular series Horizon, it is the most selling model on the 5 GHz band. The device is characterized by a gain of 12 dBi, it has vertical polarization, so it is not affected by strong sector antennas using horizontal polarization. Horizon Series includes 3 versions of the antenna operating in the 5 GHz band, each supports only part of the band, the frequency range of the offered model is the 5400 - 5800 MHz.
|
Connectors and Interfaces |
|
| RF connectors: | (1) N female |
|
Physical characteristics |
|
| Wind load [km/h]: | 170 |
| Designed for mast diameter [mm]: | 38 up to 51 |
| Purpose: | Outdoor |
| Material: | Fiberglass |
| Weight [kg]: | 0,3 |
| Depth [mm]: | 25 |
| Width [mm]: | 25 |
| Height [mm]: | 465 |
