The new dualband bullet in auliminium body as the successor to the airMAX series is a universal single-polarised radio unit with N-male connector that directly mounts on the antenna. In addition to the commonly used 5GHz band, the drive also supports the 2.4GHz band. In both cases, is compatible with other airMAX ac products only.
Technical parameters
| Dimensions | 190 x 46 x 46 mm (7.48 x 1.81 x 1.81” |
| Weight | 213 g (7.51 oz) |
| Enclosure | Aluminum and Rubber |
| Networking Interface | Gigabit Ethernet Port |

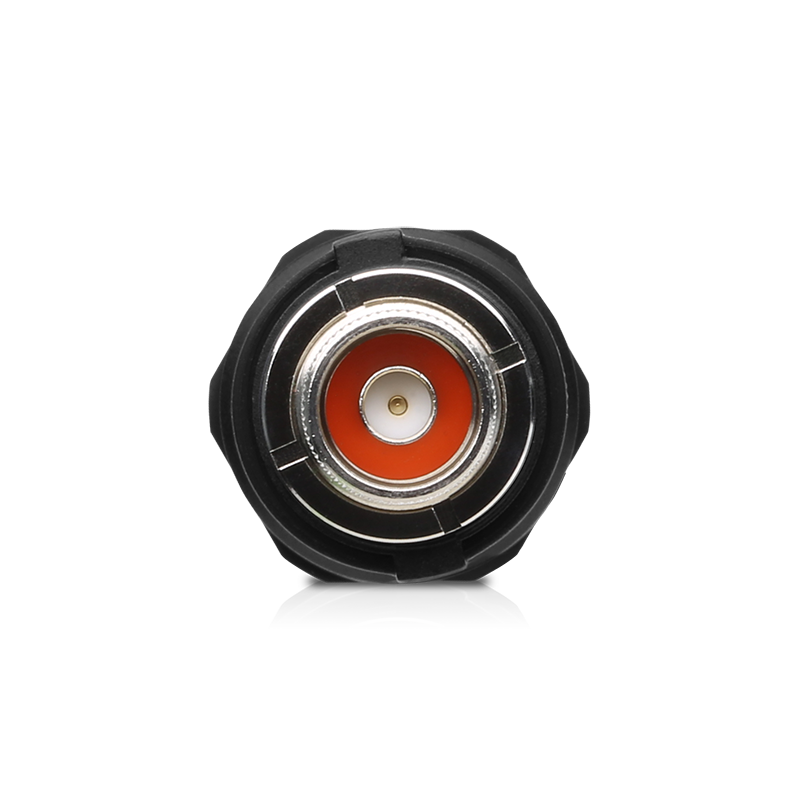

| Antenna Connector | N-Type Connector |
|
Throughput
2.4 GHz
5 GHz
|
160+ Mbps
300+ Mbps
|
| Max. Power Consumption | 7W |
| Output Power | 21 dBm |
| Power Supply | 24VDC, 0.3A (Minimum) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | 40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
