Detalhes do Produto
CRS309-1G-8S+IN

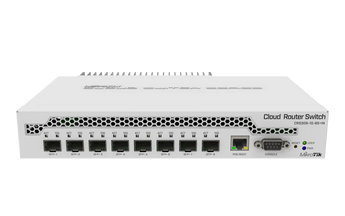

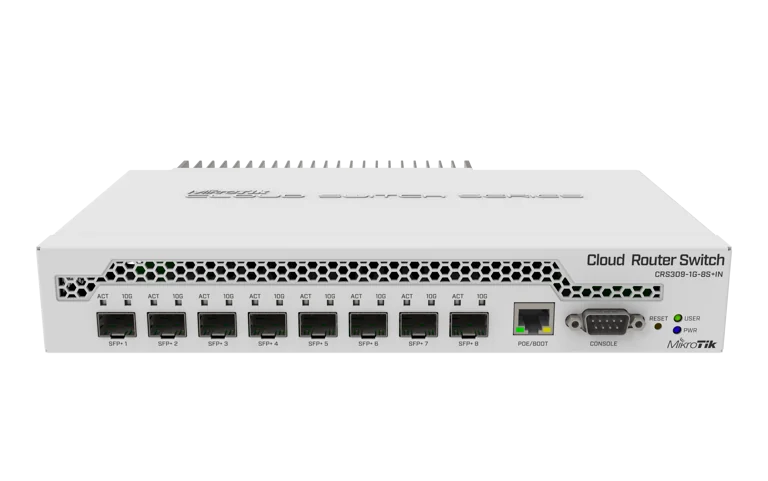

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
Product Specification:
Product code: CRS309-1G-8S+IN
Architecture: ARM 32bit
CPU: 98DX8208
CPU core count: 2
CPU nominal frequency: 800 MHz
Dimensions: 272 x 191 x 44 mm
License level: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
PoE in: 802.3af/at
PoE in input Voltage: 18-57 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 23 W
Max power consumption without attachments: 17 W
10/100/1000 Ethernet ports: 1
SFP+ ports: 8
Serial port: RS232
CPU temperature monitor: Yes
Geral
| Código do Produto | CRS309-1G-8S+IN |
|---|---|
| CPU | Dual-core 98DX8208 @ 800 MHz |
| Sistema Operativo | RouterOS / SwOS (Dual Boot) |
| Licença RouterOS | 5 |
| RAM | 512 MB |
| Armazenamento | 16 MB FLASH |
| Dimensões | 272 x 191 x 44 mm |
Alimentação
| Entradas DC | Jack DC, PoE-IN |
|---|---|
| Tensão de Entrada Suportada | 12 - 57 V (Jack DC), 18 - 57 V (PoE-in) |
| PoE-in | Sim, Passivo e 802.3af/at |
| Consumo Máximo de Energia | 23 W |
Rede
| Portas Ethernet 1G | 1 (para gestão) |
|---|---|
| Portas SFP+ (10G) | 8 |
| Porta de Console | RS232 |
Ambiente
| Temperatura de Operação | -40°C a +70°C |
|---|
