Dual-polarized parabolic antenna JRC-24 DuplEX
Usage:

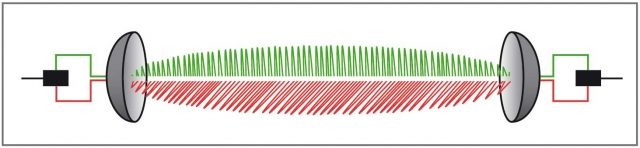

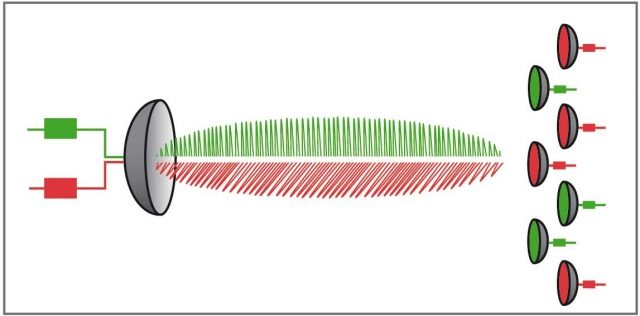

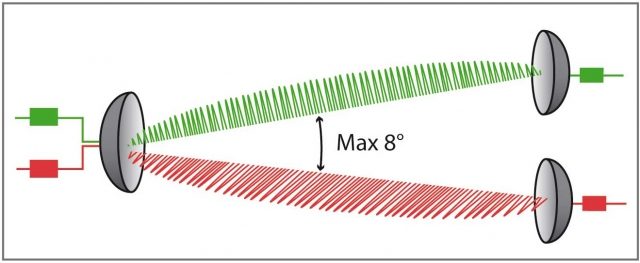

- dual-polarized antenna, horizontal and vertical polarization
- the highest isolation! 53 dB

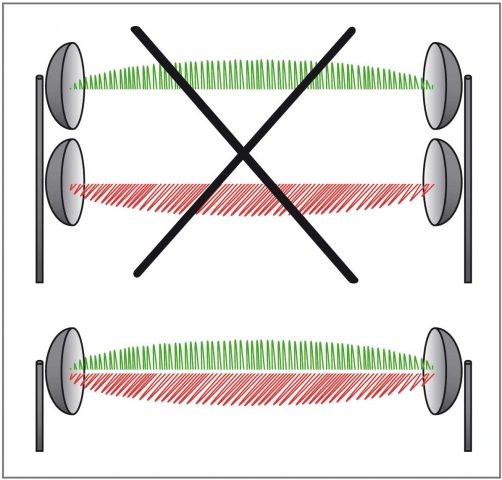

- only 1 antenna instead 2 save money for mast!
- extra high front to back ratio
- metallic collar assures increased isolation between antenna on mast = lower interference between links
- direction links for medium distance, also short in difficult conditions
- setting elevation (of gradient) and azimuth has independent adjustment
- VSWR and isolation are measured during the manufacture of every piece
- outdoor usage
- you can count attainable distance from section of calculation
- radom (plastic parabola cover) for each antenna free!
Technical parameters
| Frequency range | 5,45 - 5,9 GHz |
|---|---|
| Gain | 23,6 ±0,6dBi |
| VSWR | ≤ 1,5 |
| Isolation between connectors | 53dB (≥50dB) |
| Front to back ratio | ≥ 38 dB |
| Beamwith-3 dB | 9° |
| Connector |
N - Female - JRC-24DuplEX R-SMA - JRC-24DuplEX-SMA |
| Polarization | linear, horizontal and vertical |
| Parabola | ø 38 cm aluminium alloy with baking colour |
| Cover | UV steady plastic ABS |
| Instalation for mast | ø 27 - 74 mm |

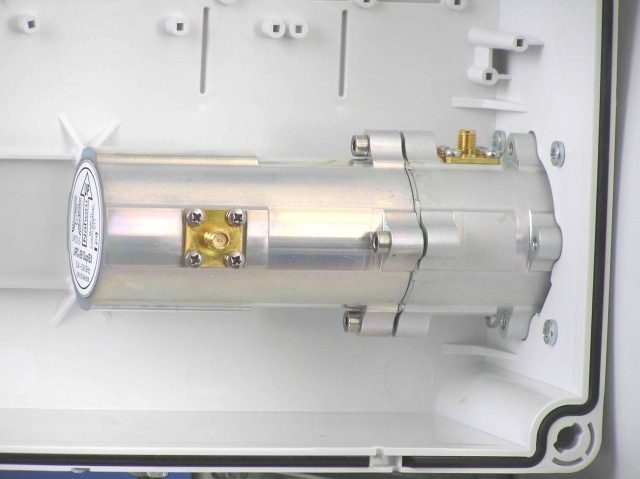

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.
