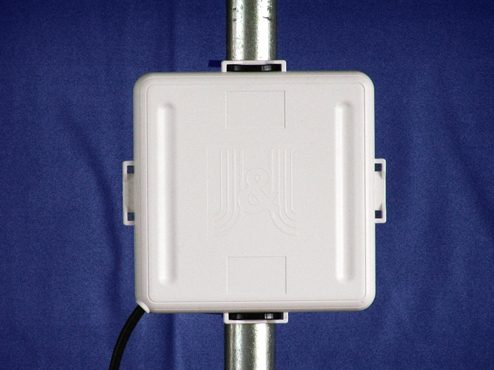

Panel antenna JPA-9
Usage:
- Perfect panel antenna for demanding users
- The lowestprice on the market with a quality guarantee
- Outdoor and indoor usage
- Client antenna
- No other transition and cables - connector RP-SMA - gild
- With provided adhesive set it is possible to stick on windows outside or inside or on other smooth surface (Some modern windows have large attenuation - it is necessary to install outside.)
- You can count attainable distance from section of calculation
Technical parameters
| Frequency range | 2,4 - 2,485 GHz |
|---|---|
| Gain | 9 dBi ± 0,5 |
| VSWR cable 3m | ≤ 1,6 |
| VSWR cable 0,5m | ≤ 2,0 |
| Beamwith | 65° (-3dB) on both planes |
| Connector | RP-SMA gild |
| Size | 123 x 123 x 13 mm |
| Polarization | horizontal or vertical according to position |
| Cover | UV steady plastic ABS |
| Attenuation of cable | 0,55 dB/m |
We deliver the antenna in sets with holders:
- JPA-9T with holder for mast ø19 - 54 mm
- JPA-9S with holder for walls (window frames,...)
- JPA-9L with adhesice set for windows including degreasing serviette - everything from 3M quality

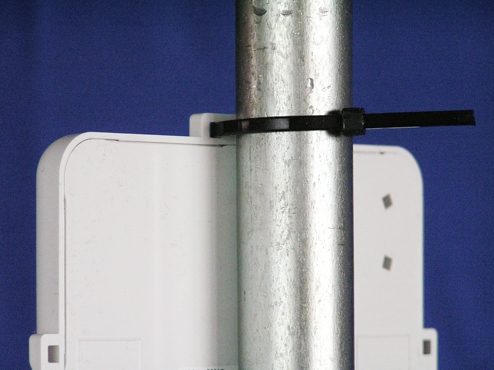

- JPA-9P with plastic, UV rezistant slips for installation on mast - low-cost version
- All versions with 0,5 or 3 m cable
- Other lengths of cable on order min. 300 pcs
