Detalhes do Produto
GentleBOX JR-300
Usage:
- GentleBOX is complet and perfect outdoor box for AP. RouterBOARD and other electronics

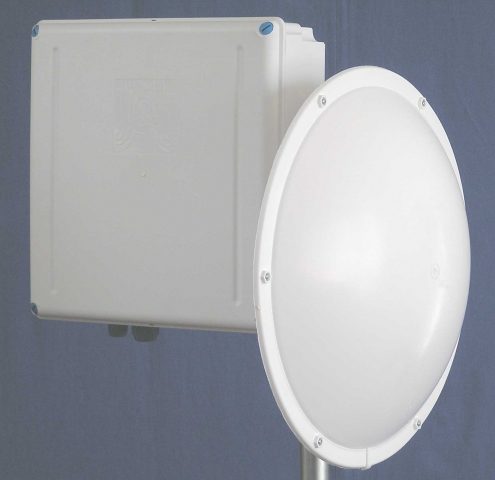

- GentleBOX is mounting ready for parabola antenna
- With GentleBOX you can forget measuring and drilling! Everything is prepared
- With GentleBOX you can forget seeking for cable bush and assembling material! Everthing is enclosed. You will require 1 flat and 2 (PH1 and PH2) cross-shaped screwdrivers and spanner "10"

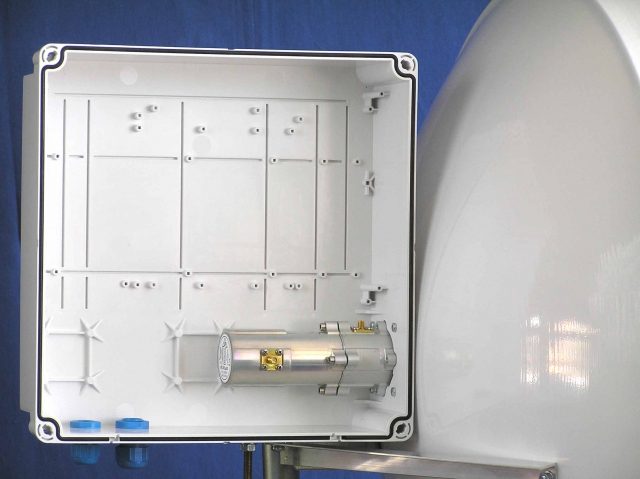

- In GentleBOX welts and holes are prepared for easy instalation of RouterBOARD or other electronics including screws and plastic piers
- Simplified mounting RB411, RB433, RB600, Alix2, Alix3, Compex, Wispstation, see the picture
Technical parameters

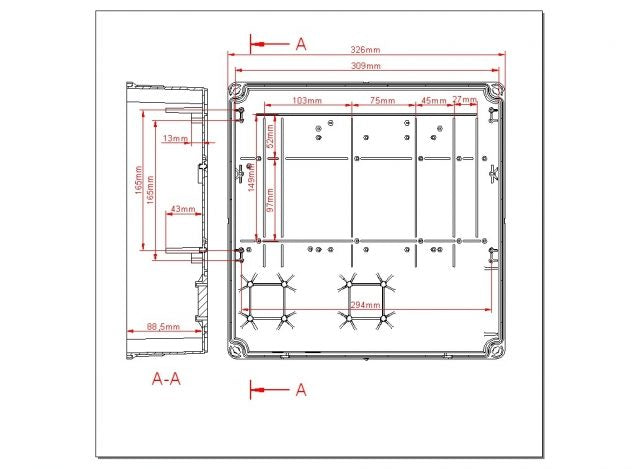

Dimensions
| Material | UV steady plastic ABS, Polyamide |
|---|---|
| Instalation | for all parabolic antennas of rank JRC-xx including DuplEX |
| Ready for 8 cable glands | 4x Pg11, 4x M20 |

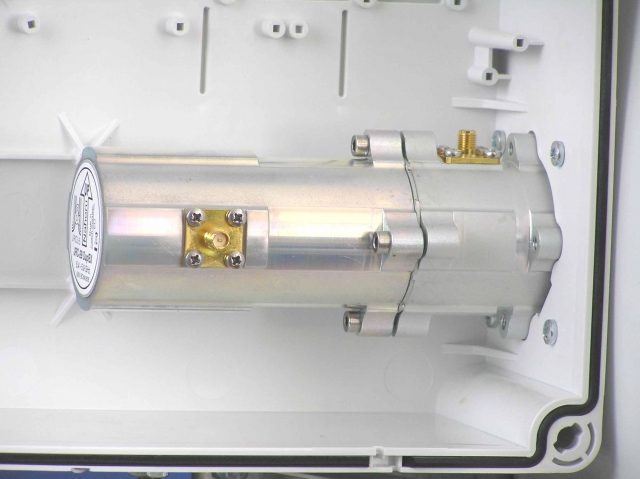

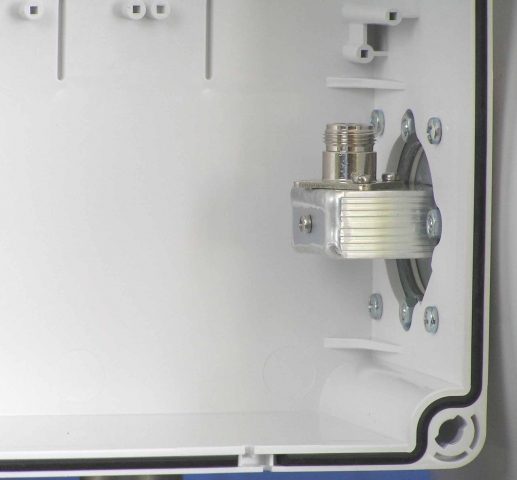

We recommend to use DuplEX antena with R-SMA connectors. Using "N" you need 1 pcs of Adaptor N right angle at horizontal connector.
Simplified mounting:
RB411
RB433
RB600
Alix2
Alix3
Wispstation
Compex

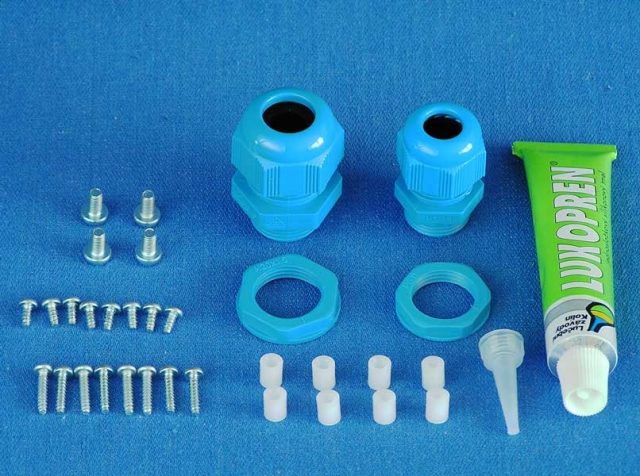

Accessories part of packing
- Lose-free bayonet locks for easy closure
- Silicone mastic for sealing passage of antenna waveguide - 1 pcs
- Cable glads Pg11 for cable ø 4 - 10 mm, extra blue quality - 1 pcs
- Cable glads M20 for cable ø 4 - 10 mm, ready for way through RJ45 - 1 pcs
- Screws for attachment of electronics + plastic piers 8+8 pcs
- Easy to use self-holding plastic piers:
