Detalhes do Produto
RB4011IGS+5HACQ2HND-IN

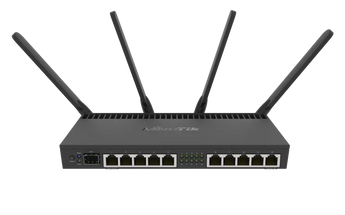

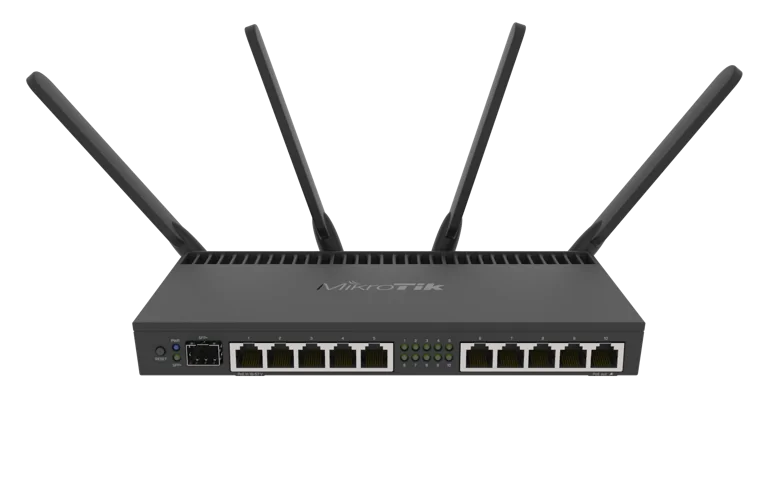

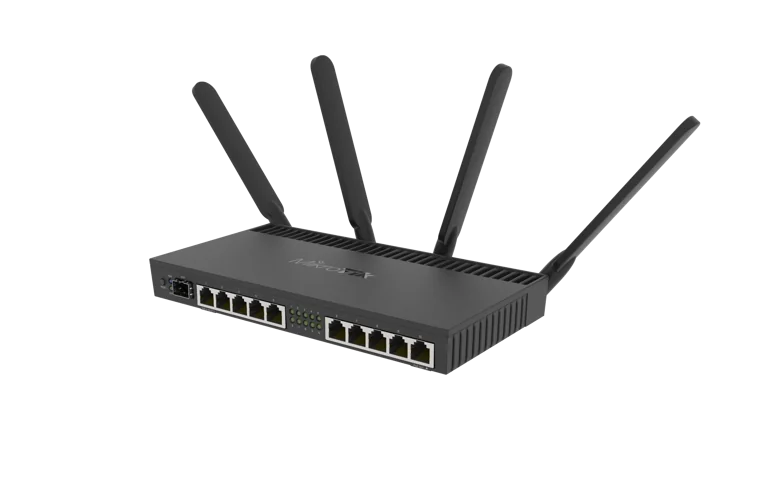

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
Product Specification
Product code: RB4011iGS+5HacQ2HnD-IN
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Dimensions: 228 x 120 x 30 mm
License level: 5
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
Tested ambient temperature: -40°C to 45°C
PoE in: Passive PoE
PoE in input Voltage: 18-57 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 44 W
Max power consumption without attachments: 23 W
PoE-out ports: Ether10
PoE out: Passive PoE up to 57V
Max out per port output (input < 30 V): 600 mA
Max out per port output (input > 30 V): 420 mA
Max total out (A): 600 mA
AC speed: AC2000
Wireless 5 GHz Max data rate: 1733 Mbit/s
Wireless 5 GHz number of chains: 4
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 3
Wireless 5 GHz chip model: QCA9984
Wireless 5 GHz generation: Wi-Fi 5
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: R11e-2HnD
Wireless 2.4 GHz generation: Wi-Fi 4
10/100/1000 Ethernet ports: 10
SFP+ ports: 1
MiniPCI-e slots: 1
Serial port: RJ45
PCB temperature monitor: Yes
Voltage Monitor: Yes
-
Certification: CE/RED, FCC, IC, EAC, ROHS
Geral
| Código do Produto | RB4011iGS+5HacQ2HnD-IN |
|---|---|
| CPU | 4 core AL21400 @ 1.4 GHz |
| Sistema Operativo | RouterOS |
| Licença RouterOS | Nível 5 |
| RAM | 1 GB |
| Armazenamento | 512 MB NAND |
| Dimensões | 228 x 120 x 30 mm |
Alimentação
| Entradas DC | PoE-IN, Jack DC |
|---|---|
| Tensão de Entrada Suportada | 12 - 57 V (Jack), 18 - 57 V (PoE-in) |
| Saída PoE (PoE-out) | Porta 10, Passivo, até 57 V |
| Consumo Máximo de Energia | 44 W (com PoE-out), 23 W (sem PoE-out) |
Wireless e Rede
| Wi-Fi | Dual-Band (2.4 GHz e 5 GHz) |
|---|---|
| Normas Wi-Fi | 802.11b/g/n (2.4GHz), 802.11a/n/ac (5GHz) |
| Chains | 2x2 (2.4GHz), 4x4 (5GHz) |
| Ganho da Antena | 3 dBi |
| Portas Ethernet 1G | 10 |
| Portas SFP+ (10G) | 1 |
Ambiente
| Temperatura de Operação | -40°C a +45°C |
|---|
