Detalhes do Produto

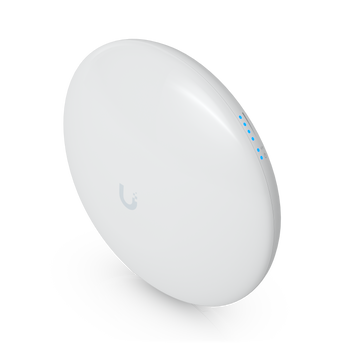

NBE-M5-16
High-Performance airMAX® Bridge Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Product Specification
-
Dimensions: 140 x 140 x 54 mm
-
Weight: 0.320 kg
-
Power Supply: 24V, 0.5A Gigabit PoE
-
Max. Power Consumption: 6W
-
Gain: 16 dBi
-
Networking Interface: (1) 10/100/1000 Ethernet Port
-
Processor Specs: Atheros MIPS 74Kc, 560 MHz
-
Memory: 64 MB DDR2, 8 MB Flash
-
LEDs: (1) Power, (1) LAN, (4) WLAN
-
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
-
Max. VSWR: 1.5:1
-
Channel Sizes: 5/8/10/20/30/40 MHz
-
Polarization: Dual Linear
-
Enclosure: Outdoor UV Stabilized Plastic
-
Mounting: Pole-Mount (Kit Included), Wall-Mount
-
Wind Loading: 21.4 N @ 200 km/h
-
Wind Survivability: 200 km/h
-
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
-
Operating Temperature: -40 to 70° C
-
Operating Humidity: 5 to 95% Noncondensing
-
Wireless Approvals: FCC, IC, CE
-
RoHS Compliance: Yes
-
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
-
Vibration Test: IEC 68-2-6
-
Temperature Shock Test: IEC 68-2-14
-
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
-
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
-
Operating Frequency Worldwide: 5150 - 5875 MHz
