Detalhes do Produto

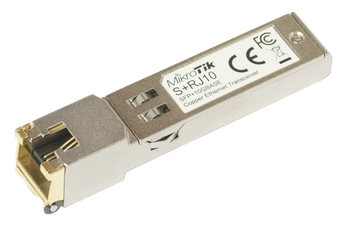

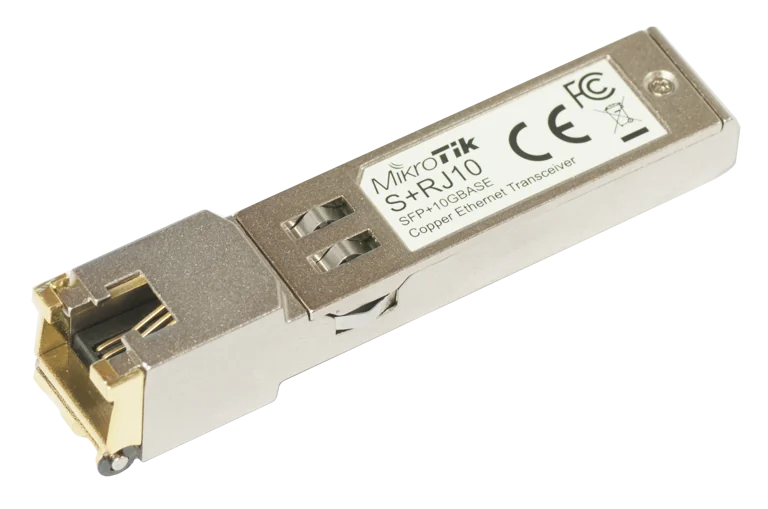

This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.
S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling.
New revision of S+RJ10 comes with several improvements:
- Jumbo frames up to 10218 Bytes are now supported;
- Link speed reporting is fixed - actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;
- DDM monitoring (Supply Voltage, Module temperature) is now supported.
Product specifications
Details
Product code S+RJ10
Connector RJ45
Data Rate 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
Distance up to 200m
Size of RAM 0 KB
Storage size 256 KB
Storage type FLASH
Tested ambient temperature -20°C to 60°C
| Código do Produto | S+RJ10 |
|---|---|
| Tipo | Módulo SFP+ para RJ45 |
| Taxas de Dados Suportadas | 10/100/1000 Mbps, 2.5G, 5G, 10G |
| Distância Máxima (10G) | 30 m (com cabo Cat6/7) |
| Consumo Máximo de Energia | 2.4 W |
