Detalhes do Produto

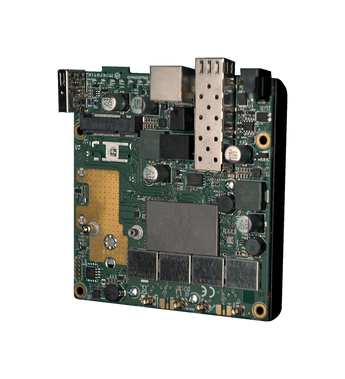

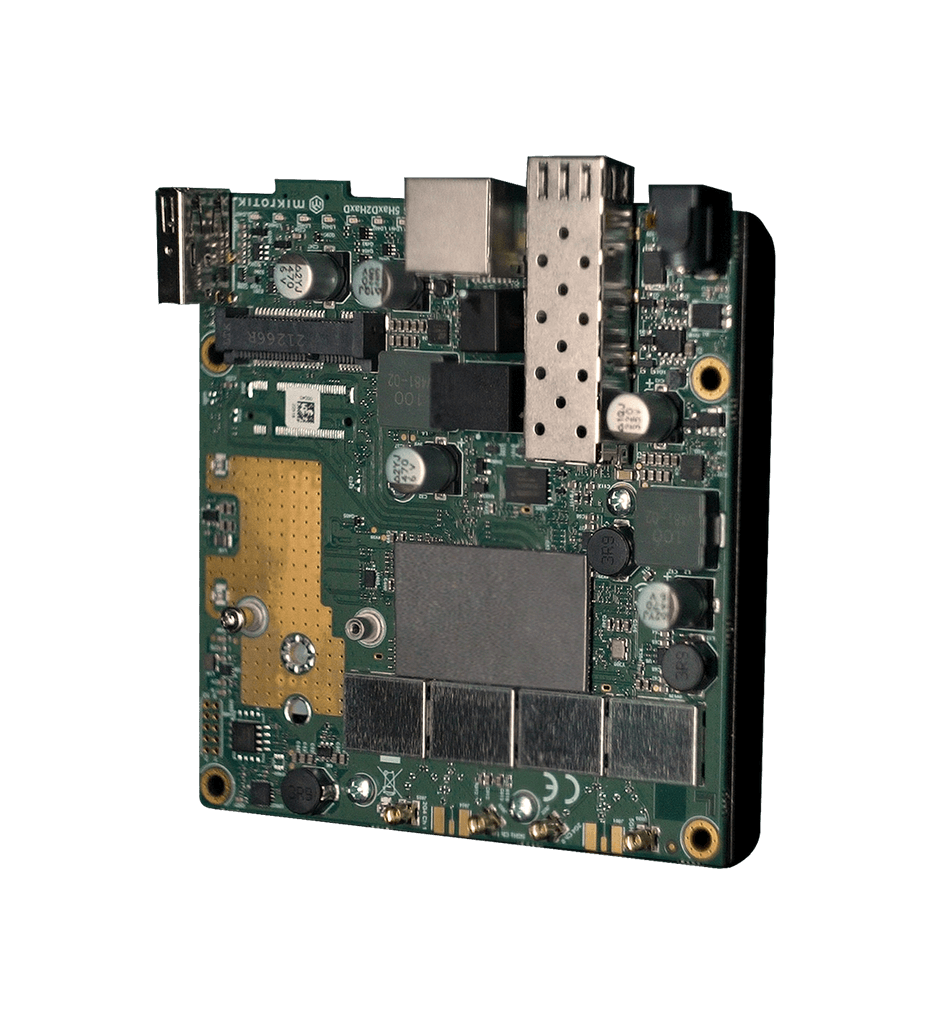

Product code: L23UGSR-5HaxD2HaxD
Architecture: ARM
CPU: IPQ-5010
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -40°C to 70°C
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 25 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Wireless 2.4 GHz chip model: IPQ-5010
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Wireless 5 GHz chip model: QCN-6102
Wireless 5 GHz generation: Wi-Fi 6
10/100/1000 Ethernet ports: 1
SFP ports: 1 (2.5G supported)
Number of SIM slots: 1 Modem (Nano SIM)
MiniPCI-e slots: 1
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
PCB temperature monitor: Yes
Voltage Monitor: Yes
Beeper: Yes
Certification: CE, FCC, IC, ROHS
Geral
| Código do Produto | L23UGSR-5HaxD2HaxD |
|---|---|
| Arquitetura | ARM |
| Sistema Operativo | RouterOS v7 |
| Licença RouterOS | 4 |
Processamento
| CPU | Dual-Core IPQ-5010 @ 800 MHz |
|---|---|
| RAM | 256 MB |
| Armazenamento | 128 MB NAND |
Alimentação
| Entradas DC | 2 (PoE-IN, Jack DC) |
|---|---|
| Tensão de Entrada (PoE in) | 18-28 V (Passivo) |
| Tensão de Entrada (Jack DC) | 12-28 V |
| Consumo Máximo de Energia | 25 W |
Wireless e Rede
| Bandas Wi-Fi | 2.4 GHz e 5 GHz (Dual-Band) |
|---|---|
| Normas Wireless | 802.11b/g/n/ax (Wi-Fi 6) |
| Chains | Dual-chain (2x2) |
| Conectores de Antena | 4x MMCX |
| Portas Ethernet 1G | 1 |
| Portas SFP 2.5G | 1 |
| Slots MiniPCIe | 1 |
| Slots SIM | 1 NanoSIM |
| Portas USB | 1 (USB 2.0 tipo A) |
Ambiente
| Temperatura de Operação | -40°C a +70°C |
|---|
