Detalhes do Produto

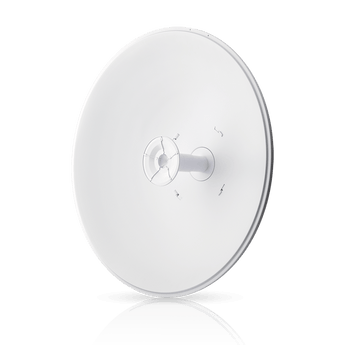

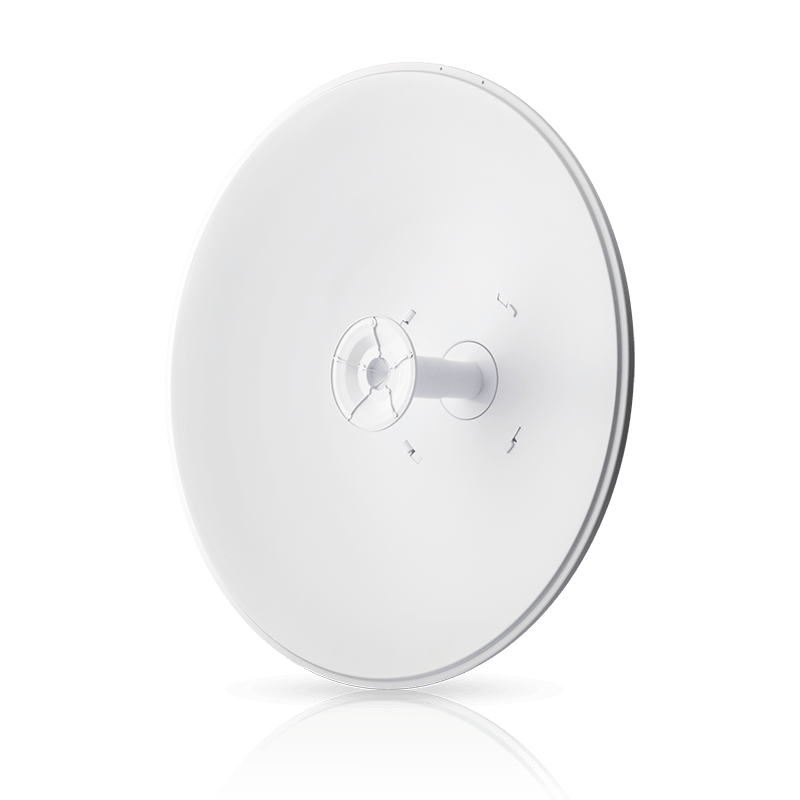

| Model | AF-5G30-S45 |
| Dimensions | ø 650 x 386 mm (ø 25.59 x 15.20") |
| Weight | 7.4 kg |
| Frequency Range | 5.1 - 5.9 GHz |
| Gain | 30 dBi |
| + 45° Beamwidth | 5.8° (3 dB) |
| - 45° Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

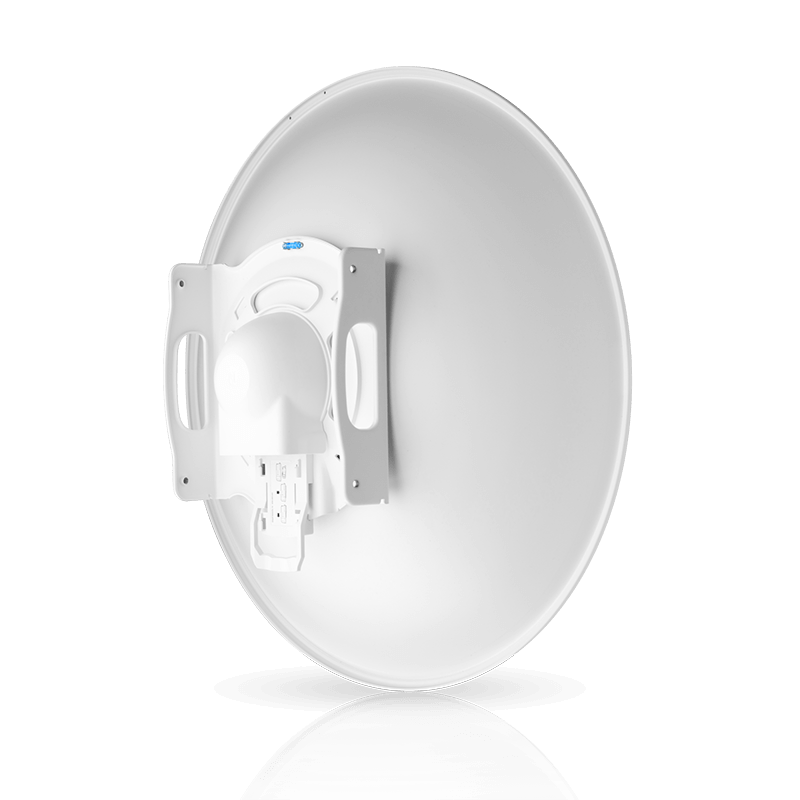

| Mounting | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included |
