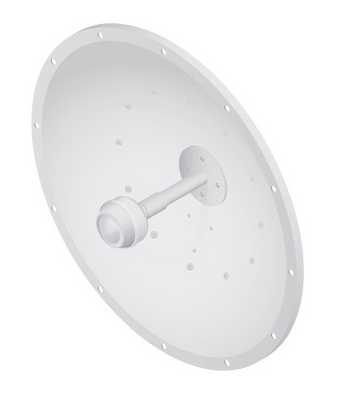

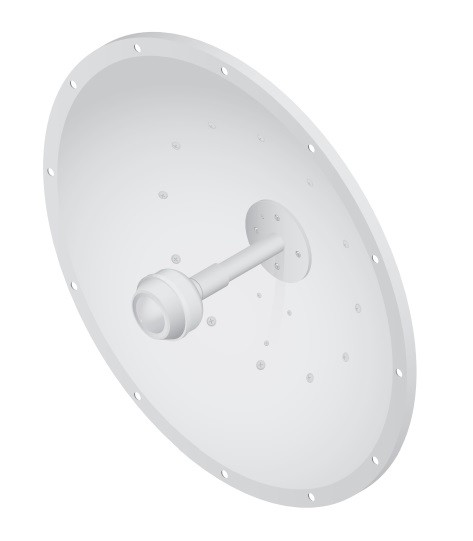

The AF-2G24-S45 is a airFiber dish that has a frequency of 2.4GHz, 24dBi gain and a slant of 45° in a 650mm diameter size. This antenna pairs with the AF-2X radio to create the endpoint of a high performance, Point-to-point bridge or network backhaul. The airFiber X antenna delivers 2x2, dual polarity performance. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Product Specifications:• Frequency Range: 2.3 - 2.7GHz
• Dimensions: ∅650 x 295mm (∅25.59 x 11.61")
• Weight: 9.8kg (21.61lbs)
• Gain: 24dBi
• F/B Ratio: 28dB
• Max VSWR: 1:6:1
• Wind Loading: 177lbf @ 125mph (787N @ 200km/h)
• Wind Survivability: 125mph (200km/h)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35dB minimum
• ETSI Spec.: EN 302 326 DN2
• Mounting: Universal pole mount
