AMO-5G10

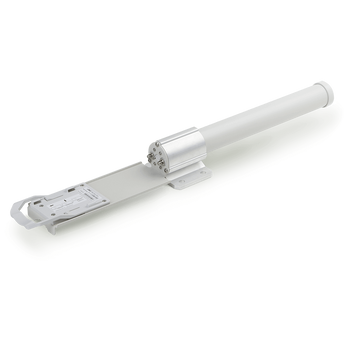

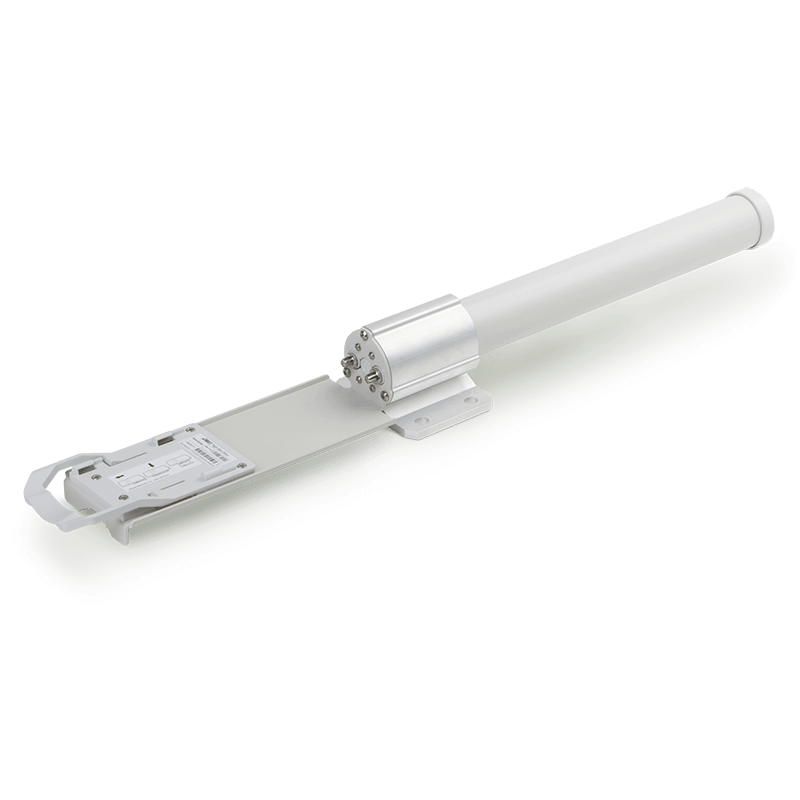

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Product Specification
Dimensions (mm): 582 x 90 x 65
Weight: 0.68 kg
Frequency Range: 5.45 - 5.85 GHz
Gain: 10 dBi
Elevation Beamwidth: 12°
Max. VSWR: 1.6:1
Downtilt: 4°
Wind Survivability: 200 km/h
Wind Loading: 71.17 N @ 200 km/h
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB Min.
ETSI Specification: EN 302 326 DN2
