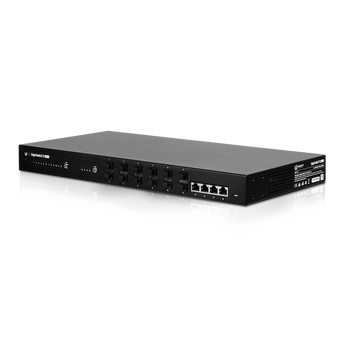

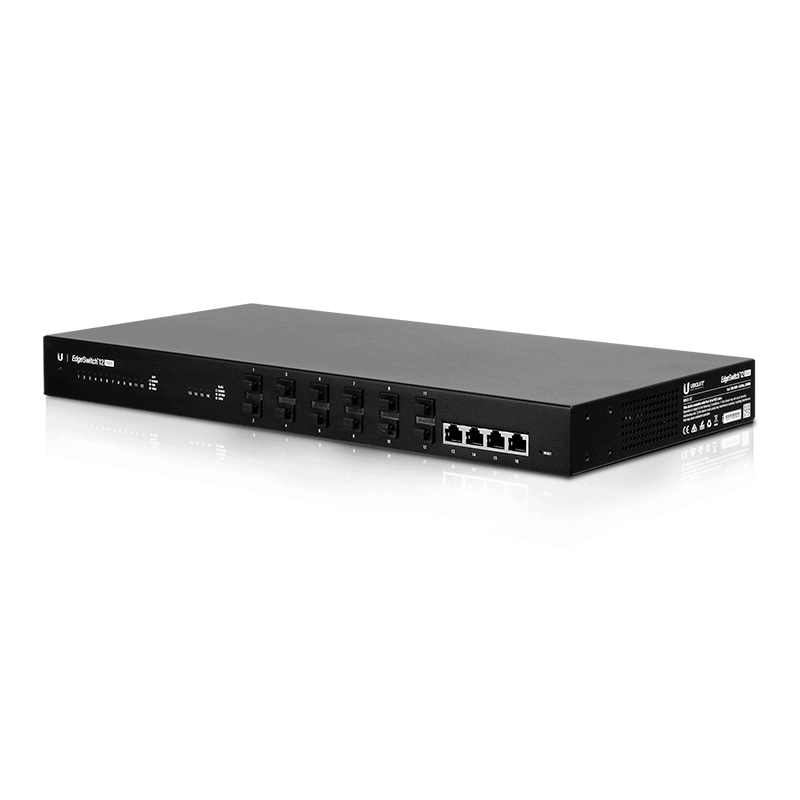

ES-12F
The EdgeSwitch ES-12F is a fully managed, high-performance Gigabit switch providing up to 12 fiber connectivity options for your growing networks.
Features:
(12) Gigabit SFP Ports
(4) Gigabit RJ45 Ports
(1) Serial Console Port
Non-Blocking Throughput: 16 Gbps
Switching Capacity: 32 Gbps
Forwarding Rate: 23.81 Mpps
Maximum AC Power Consumption: 56W
Rackmountable with Rack-Mount Brackets (Included)
DC Input Option (Redundant or Stand-Alone)
Product Specification
Dimensions: 443 x 221 x 43 mm
Weight Rack-Mount Brackets Included: 2.68 kg
Weight Rack-Mount Brackets Excluded: 2.59 kg
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 16 Gbps
Switching Capacity: 32 Gbps
Forwarding Rate: 23.81 Mpps
Max. AC Power Consumption: 56W
Power Method:
AC: 100-240VAC/50-60 Hz, Universal Input
DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply: AC/DC, Internal, 56W DC
Networking Interfaces:
(8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rackmount: Yes, 1U High
ESD/EMP Protection: Air: ±24 kV Contact: ±24 kV
Operating Temperature: -5 to 40° C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
