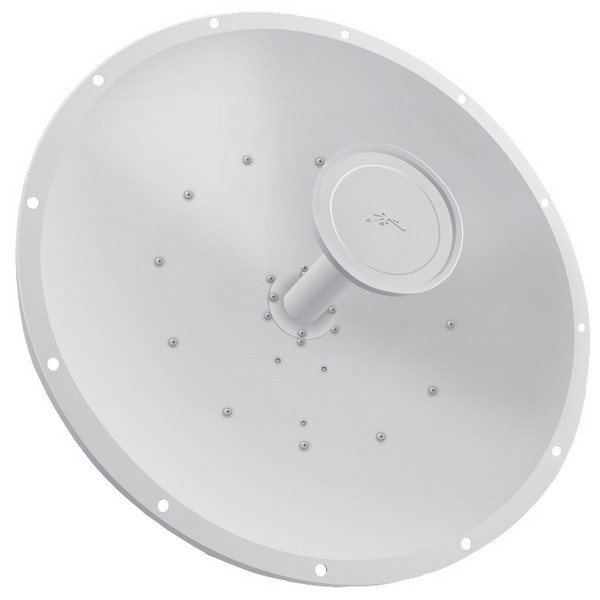

RD-2G24
Product Specification
Dimensions*: 650 x 650 x 295 mm
Weight**: 9.8 kg
Frequency Range: 2.3 - 2.7 GHz
Gain: 24 dBi
HPOL Beamwidth: 6.6° (3 dB)
VPOL Beamwidth: 6.8° (3 dB)
F/B Ratio: 28 dB
Max. VSWR: 1:6:1
Wind Loading: 787 N @ 200 km/h
Wind Survivability: 200 km/h
Polarization: Dual-Linear
Cross-Pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
* Dimensions exclude pole mount and Rocket (Rocket sold separately)
** Weight includes pole mount and excludes Rocket (Rocket sold separately)
