Ubiquiti UniFi UAP-XG

UAP-XG

Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.

Features:

• 10Gigabit Ethernet Support

• 4x4 MU-MIMO Quad-Radio:: (3) client, 1 Security

• Dual 5 GHz 802.11ac Wave 2 Radios

• 3.466 Gbps Combined Radio Rate in 5 GHz

• 800 Mbps Radio Rate in 2.4 GHz

• Dedicated Security Radio with Persistent Threat Management

• 1,500 Client Association Limit

• 802.3bt Power Injector Included

Product Specification

• Dimensions: 228 x 228 x 50 mm

• Weight: 1.20 kg

• Weight With Mounting Kits: 1.35 kg

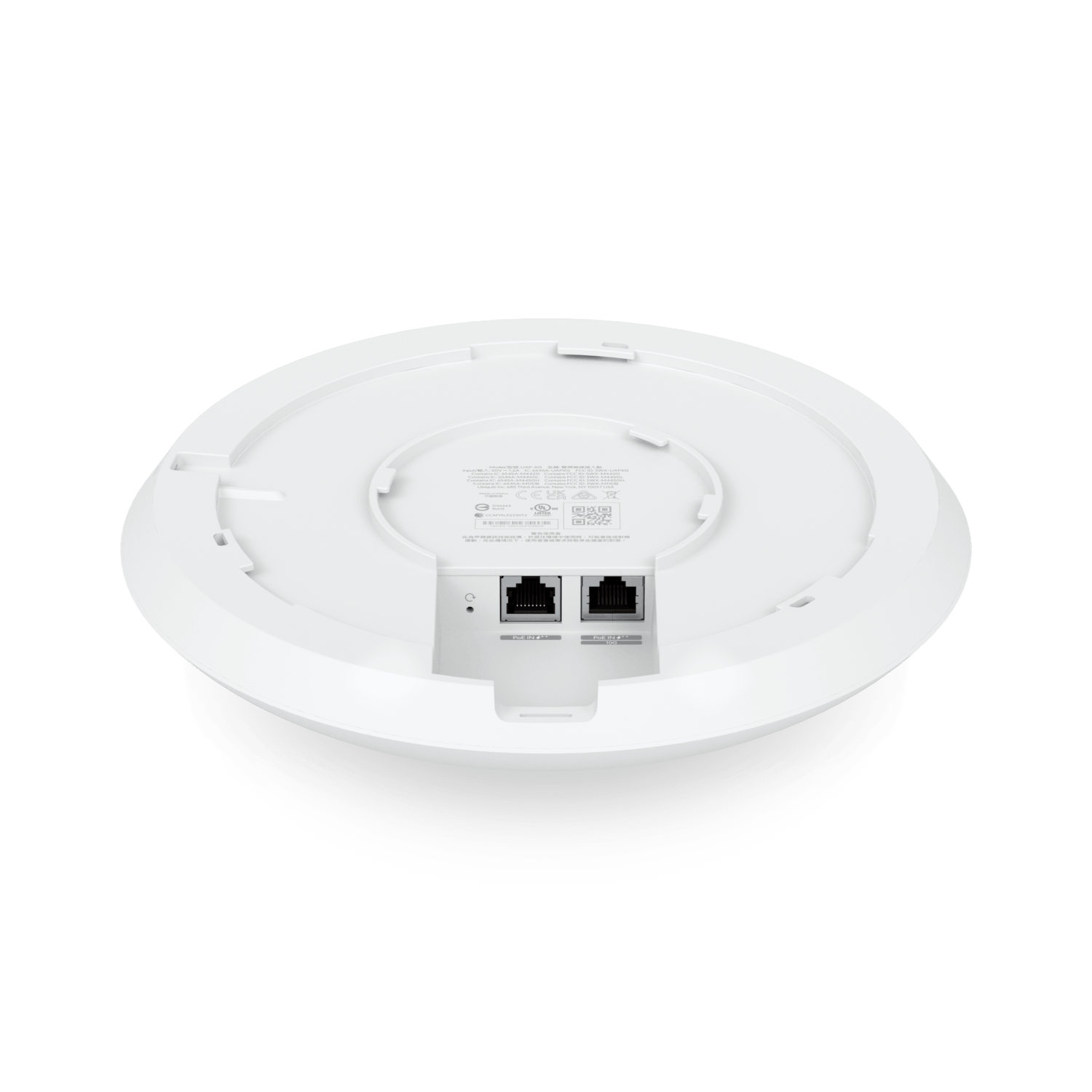

• Networking Interface:

• (1) 10/100/1000 Ethernet Port

• (1) 1/10 Gbps ICM Ethernet Port

• Buttons: Reset

• Power Method: 802.3bt PoE

• Supported Voltage Range: 44 to 57VDC

• Power Supply: PoE Injector 50VDC, 1.2A Gigabit

• Power Save: Supported

• Beamforming: Supported

• Maximum Power Consumption: 31W

• Radios: 2.4 GHz, (2) 5 GHz, Security

• Maximum TX Power: 2.4 GHz: 25 dBm | 5 GHz: 25 dBm

• Antennas:

• 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each

• 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each

• Wi-Fi Standards : 802.11 a/b/g/n/r/k/v/ac/ac-wave2

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF

• BSSID: Up to 8 per Radio

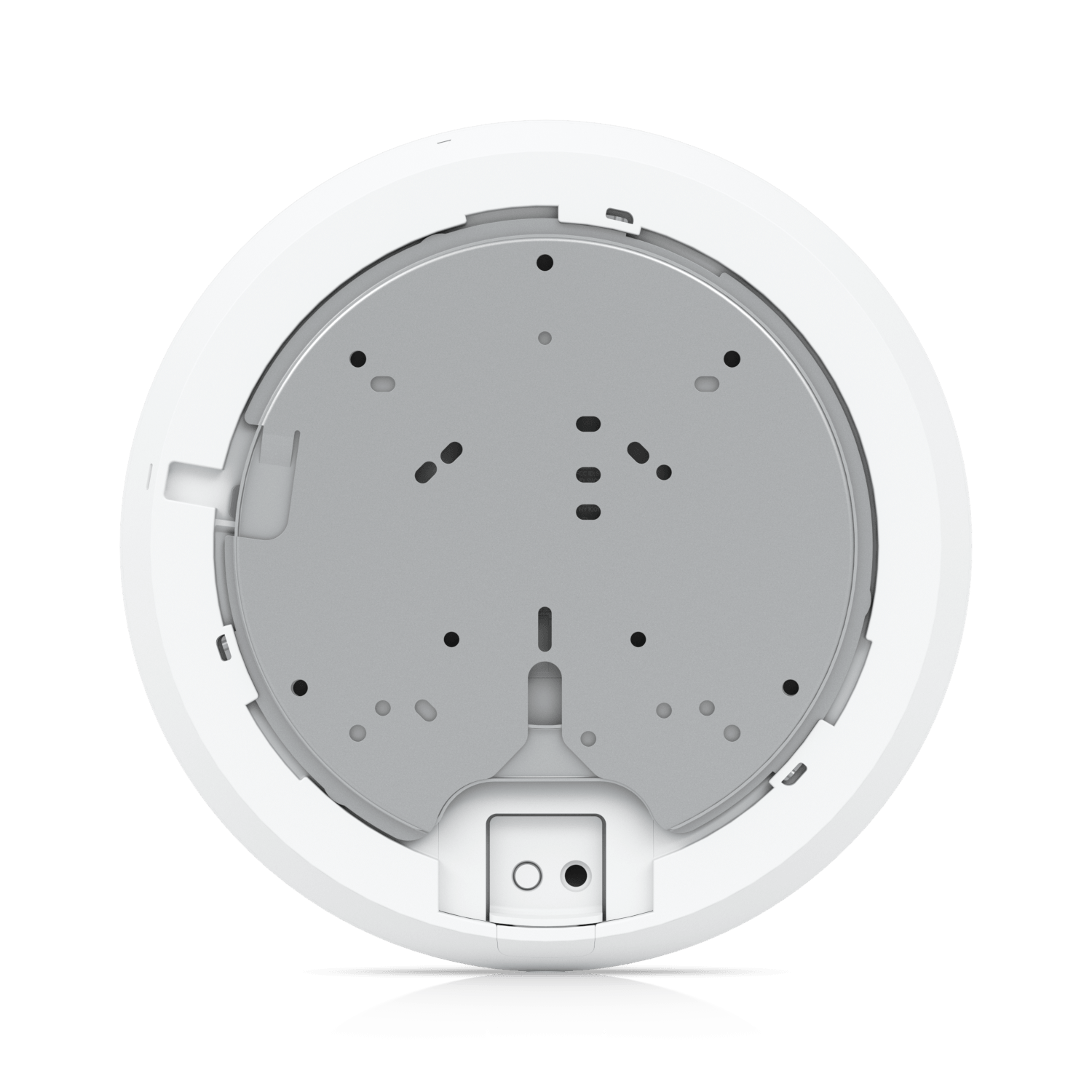

• Mounting: Wall/Ceiling/Junction Box (Kits Included)

• Operating Temperature: -10 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• WMM: Voice, Video, Best Effort, and Background

• Concurrent Clients: 1500

• 802.11ac:

• 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

• 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)

• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps
