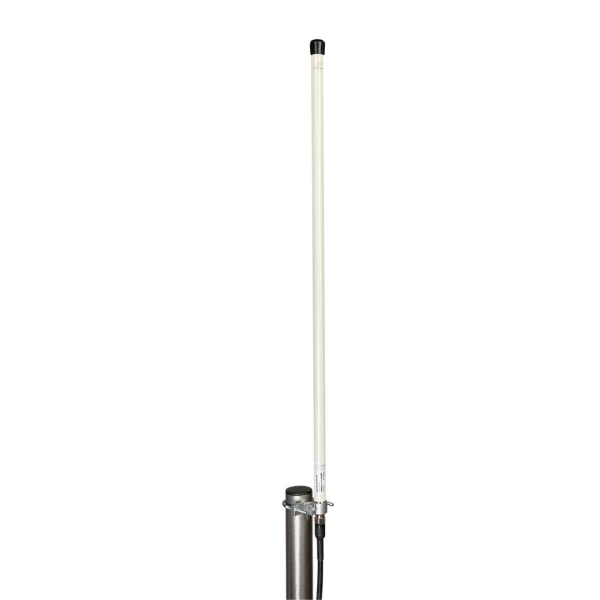

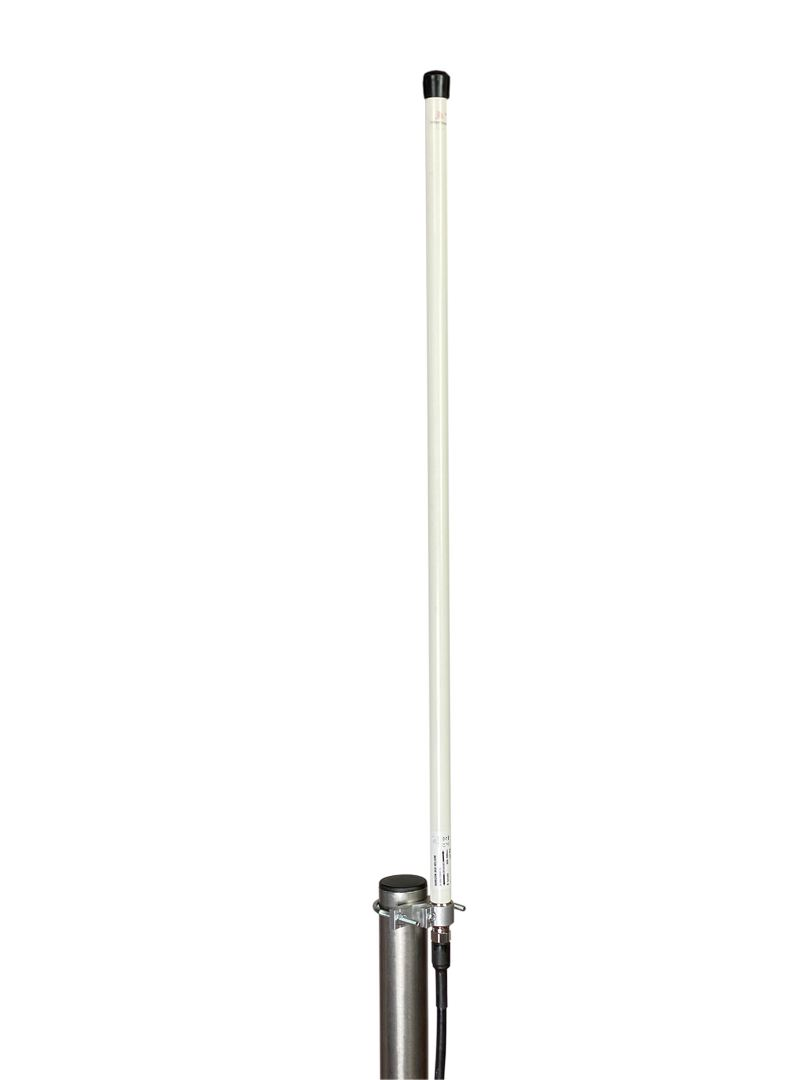

ANTENA OMNIDIRECIONAL INTERLINE HORIZON 868 HELIUM LoRaWan 8dBi

IH-G08-F8688-V2

Antena Omnidirecional para Exterior de 8dBi a 868MHz, pefeita para Helium LoRaWan

Product Specification

• Product code: IH-G08-F8688-V2

• Antenna type: omnidirectional

• Frequency class: 868 MHz

• Frequency (min): 860MHz

• Frequency (max): 880MHz

• Gain: 8dBi

• Gain (max): 0dBi

• VSWR (max): 1.50:1

• Half Power Beam Width (-3dB) - horizontal: 360°

• Half Power Beam Width (-3dB) - vertical: 15°

• Cross Polarization Discrimination: >20dB

• Polarization: Vertical

• Impedance: 50O

• Max Composite Power: 500W

• DC Ground: yes

• Connector: N female

• Mounting Diameter: ø 38…51mm

• Weight (incl. mount): 0.47kg

• Dimensions (excl. mount): 860x26

• Enviroment: Outdoor

• Windload: 160km/h
