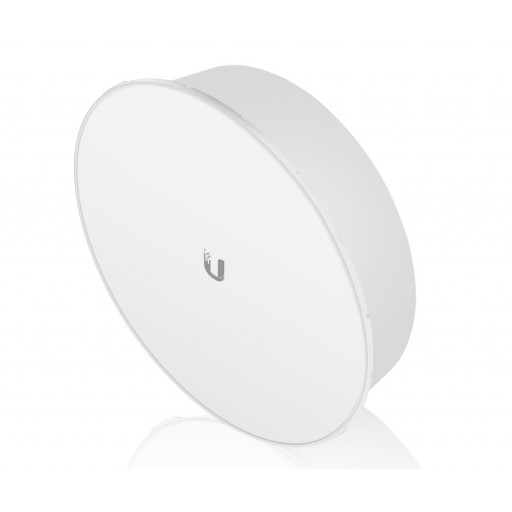

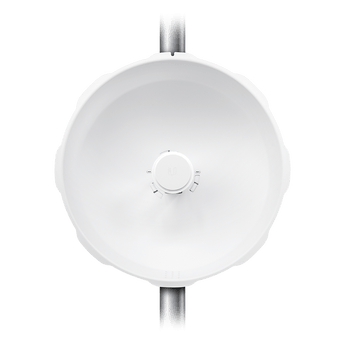

Powerbeam M5, antenna 300mm 22dBi ISO

PBE-M5-300-ISO

Product Specification:

• Dimensions: 364 x 364 x 276 mm

• Weight: 2.55 kg

• Processor Specs: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2, 8 MB Flash

• Networking Interface: (1) 10/100 Ethernet Port

• Power Supply: 24V, 0.5A PoE

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 20-26VDC

• Max. Power Consumption: 6W

• Gain: 22 dBi

• Operating Frequency Worldwide: 5170 - 5875 MHz

• Wind Loading: 210 N @ 200 km/h

• Wind Survivability: 200 km/h

• LEDs: (1) Power, (1) LAN, (4) WLAN

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Channel Sizes: 5/8/10/20/30/40 MHz

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount Kit Included

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Non-Condensing

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes
