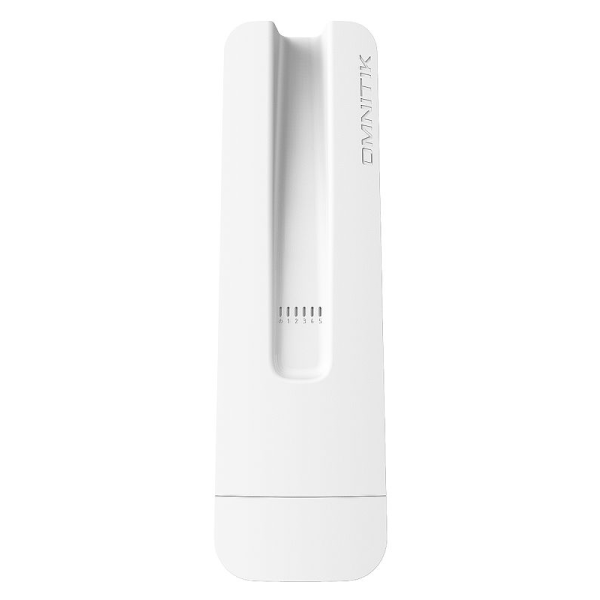

5Ghz Dual Chain 802.11 a/n/ac OmniTikU-5HnD (level 4)

SKU
RBOMNITIKPG-5HACD
129,38 € 105,19 €
7.5dBi Integrated AP, 5GHz Dual chain with 802.11ac support, 5x Gigabit Ethernet ports with PoE-out

Em Stock

Entrega prevista 11 de setembro

OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.



Specifications

Details
Product code RBOmniTikPG-5HacD
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 416 x 129 x 58 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Suggested price $129.00


Powering

Details
Max Power consumption 18W
PoE in Passive PoE
PoE out 802.3af/at
PoE in input Voltage 12-57 V
Number of DC inputs 1 (PoE-IN)


Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 7.5
Wireless 5 GHz chip model QCA9892


Ethernet

Details
10/100/1000 Ethernet ports 5


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
