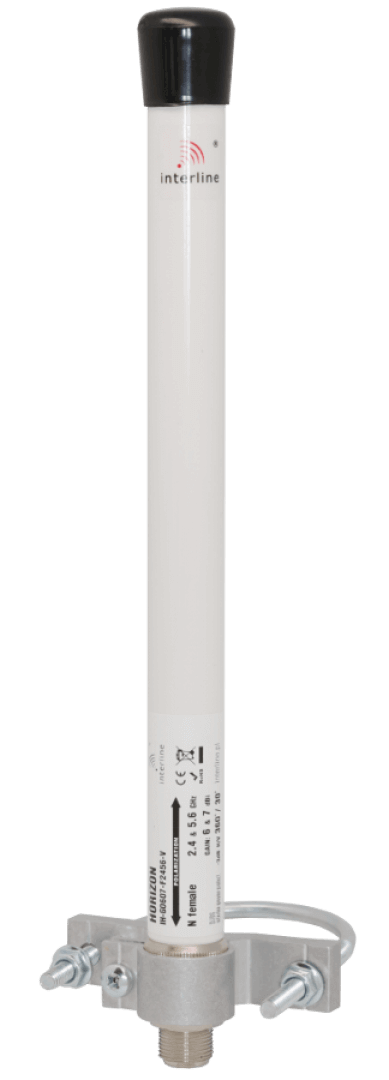

ANTENA INTERLINE OMNI HORIZON LOGIS DUAL-BAND V.1

HORIZON LOGIS DUAL-BAND V.1

Each interline product is designed to perform in a variety of environments. Implementing the antenna system can greatly improve coverage and performance.To optimize the overall performance of a wireless LAN, it is important to understand how to maximize radio coverage with the appropriate antenna selection and placement. An antenna system comprises numerous components, including the antenna, mounting hardware, connectors, antenna cabling, and in somecases, a lightning arrestor. A new broadband antenna from the popular logis series. The antenna works with two beams of radiation.

Product Specification

• Frequency band(s):

• 2400 - 2500

• 4900 - 6000

• Gain:

• 6dBi

• 7dBi

• VSWR (max): 1.70:1

• Polarization: Vertical

• Half Power Beam Width (-3dB) - horizontal: 360°

• Half Power Beam Width (-3dB) - vertical: 30°

• XPD (Cross Polarization Discrimination): >18dB

• Max Composite Power: 2W

• DC Ground: no

• Impedance: 50O

• Connector: N female

• Mounting Diameter: ø 38…62mm

• Dimensions (excl. mount): 290x26

• Weight (incl. mount): 0.30kg

• Enviroment: Outdoor, Indoor

• Windload: 200km/h

• IP Rating: IP64

• Temperature: -40°C ... 80°C
