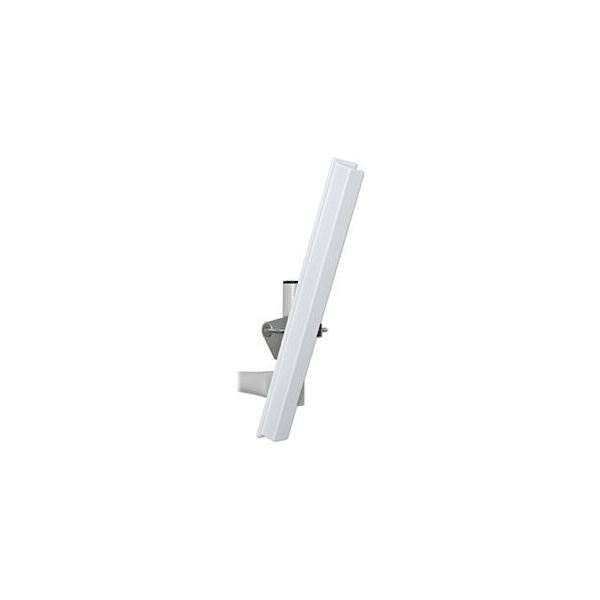

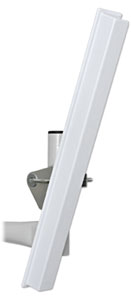

ANTENA SECTORIAL 2.4GHz 15dBi - V-LineSektor 15

SKU
V-LSEK-15
36,01 € 29,28 €
The bracket offers 17 degrees of mechanical up or down tilt. SA 24-180-15V antenna comes with N Female connector in standard.

Sem stock

Contacte-nos para previsão

Sector antenna with 15 dBi gain, which works in a vertical polarization. It is suitable to use in base station in areas where work a lot of horizontal-polarization antennas. Vertical widebeam (17 degrees) allows for connections in medium distances. This antenna is made of microwave PCB, which gives incomparable high gain in comparison with its dimensions. A shield is made of durable ABS material, this enclosure protects our antennas fully from severe weather conditions.

The bracket offers 20 degrees of mechanical up or down tilt. SA 24-180-15V antenna comes with N Female connector in standard. Antennas carry a 3 year warranty.

Details
product code SA 24-180-15V
antenna type sector
frequency range 2,4 - 2,5 GHz
gain 15 dBi
polarization vertical
back ratio n/a dB
vertical beam width 17º
horizontal beam width 180º
VSWR 1 to 1,4
Impedance 50 Ohm
connector N Female
mounting pole mount
bracket diameter 30 - 50 mm
dimensions 615 x 55 x 33 mm
weight 400 g
package paperboard
