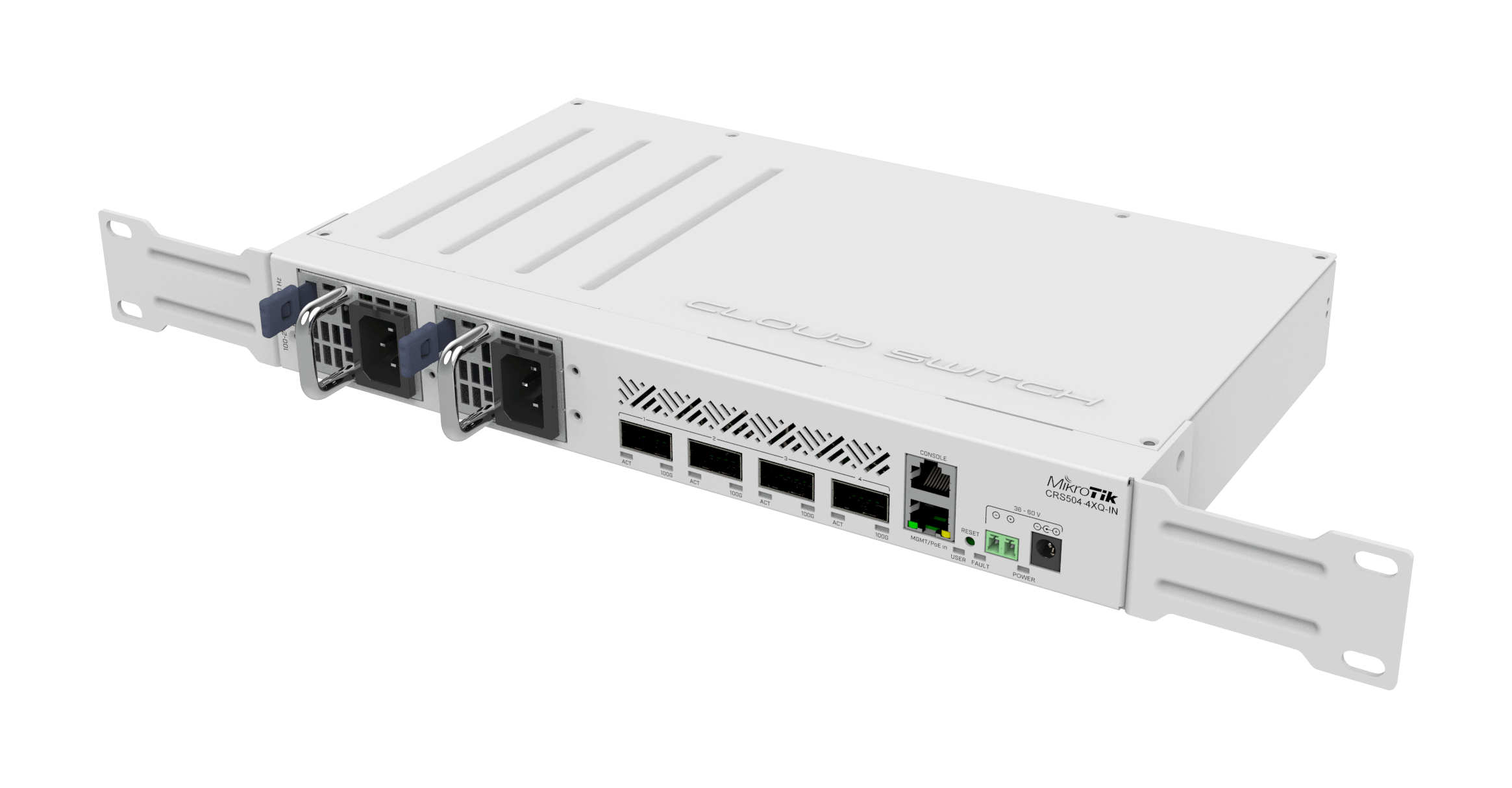

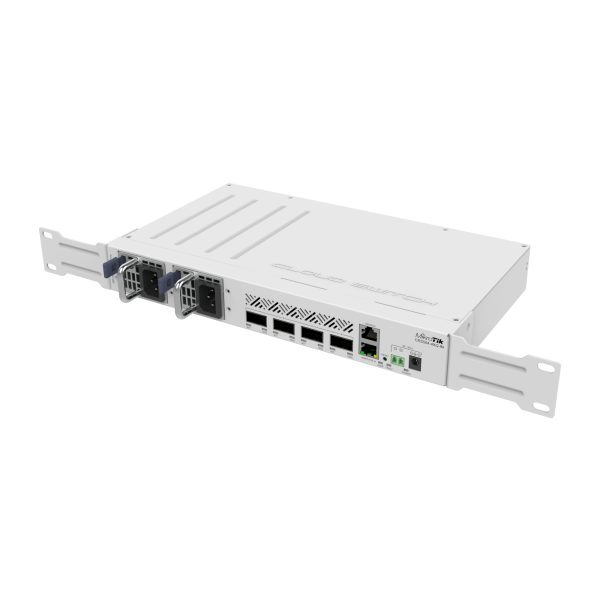

Cloud Router Switch 504-4XQ-IN with RouterOS L5, desktop

CRS504-4XQ-IN

The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well.

Product Specification:

• Product code: CRS504-4XQ-IN

• Architecture: MIPSBE

• CPU: QCA9531

• CPU core count: 1

• CPU nominal frequency: 650 MHz

• RouterOS license: 5

• Operating System: RouterOS

• Size of RAM: 64 MB

• Storage size: 16 MB

• Storage type: FLASH

• Tested ambient temperature: -40°C to 70°C

• Number of AC inputs: 2

• AC input range: 100-240

• Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)

• DC jack input Voltage: 36-57 V

• 2-pin terminal input Voltage: 36-57 V

• Frequency (Hz): 47-63

• Max power consumption: 41 W

• Max power consumption without attachments: 25 W

• Cooling type: 2

• PoE in: 802.3 bt

• PoE in input Voltage: 43-57 V

• 10/100 Ethernet ports: 1

• Number of 100G QSFP28 ports: 4

• Serial console port: RJ45

• CPU temperature monitor: Yes

• PCB temperature monitor: Yes

• Voltage Monitor: Yes

• Certification: CE, EAC, ROHS

• IP: 20
