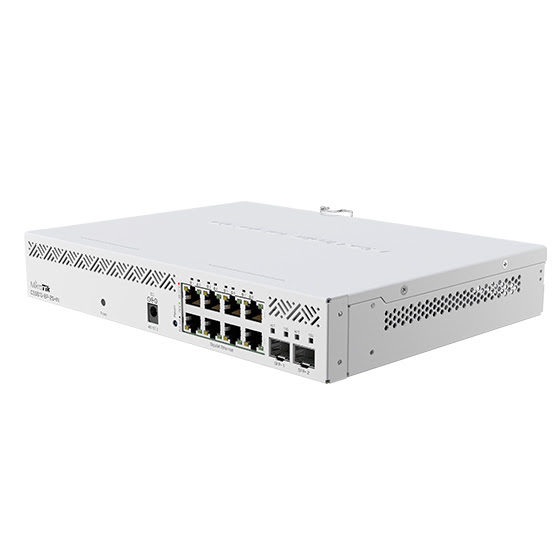

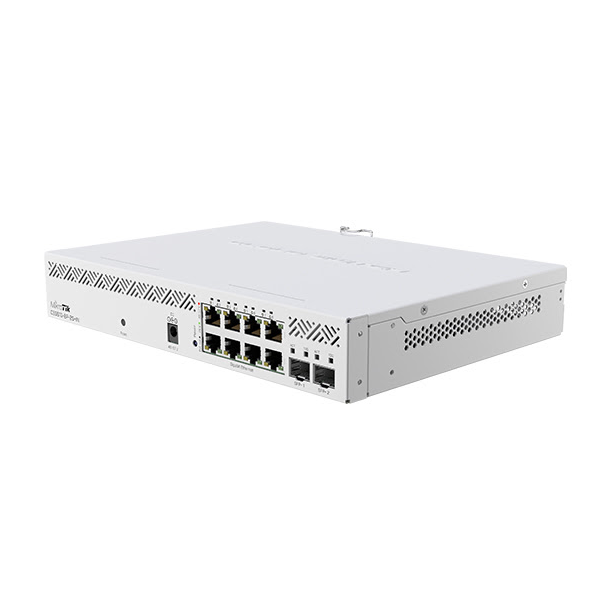

Cloud Smart Switch 610-8P-2S+IN with SwitchOS

CSS610-8P-2S+IN

Product Specification

• Product code: CSS610-8P-2S+IN

• Number of 1G Ethernet ports: 8

• Number of 10G SFP+ ports: 2

• Switch chip model: 88E6193X

• Dimensions: 272 x 216 x 50 mm

• Operating temparature: -40°C to +70°C

• Number of DC inputs: 1

• DC jack input Voltage: 48-57 V

• Max power consumption without attachments: 12 W

• Max power consumption: 162 W

• Number of AC inputs: 1

• Nominal voltage: 54 V

• Nominal current: 2.8 A

• AC input range: 100-240 V

• Max power consumption (without attachments): 12 W

• Max power consumption: 162 W

• PoE-out: 802.3af/at

• Smart PoE: Controller

• PoE-out ports: Ether1-Ether8, max out per port output (input < 30 V): 1000 mA, max out per port output (input > 30 V): 625 mA

• Total output power: 140 W
