DIGITUS IP44 OUTDOOR SURFACE MOUNT FOR 2X KEYSTONE

DN-93844-OD-2

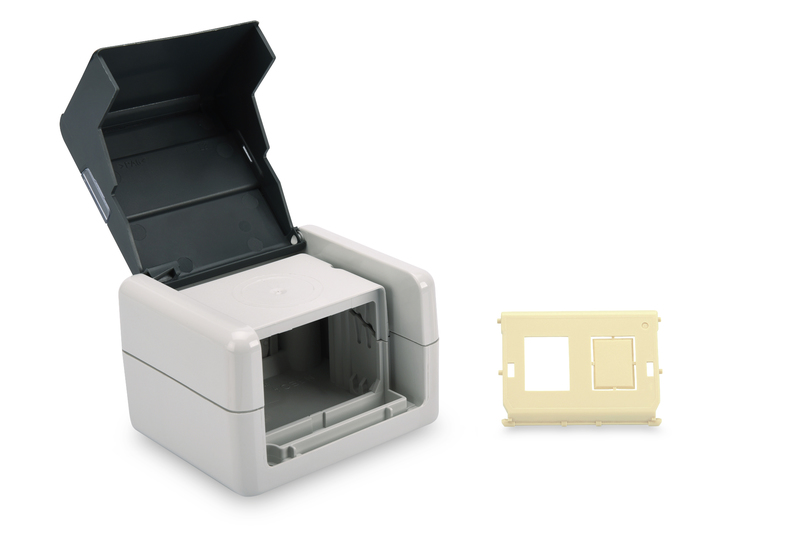

Outdoor Surface Mount Box IP44, surface mount, hinged lid, incl. inlet for 2x Keystone Modules

Set consists of a data socket (DN-93844-OD) & use for 2 Keystone Modules (DN-93844-OD-1)

• Suitable for outdoors

• Suitable for surface mounting

• Halogen-free, LSZH, UL 94V-0

• Protection type: IP44

• 2 port mounting use for two Keystone Modules (including dust protection)

• Hinged lid with labelling field (without print)

The IP44 data socket for Keystone Modules boasts an easy installation process thanks to screw fastening and a vertical outlet for the data cable. The Keystone Module connections are protected by a hinged lid. An integrated labelling field enables individual markings. A mounting inlet (DN-93844-OD-1) for the Keystone Modules is included in this set. This set is suitable for outdoor use and surface mounting. The housing is halogen-free (LSZH) and can be used in temperature ranges of -20° to +70°C (ABS, thermoplastic).

Technical Details:

• Execution Keystone Accommodation: 90° outlet

• General properties:

• Suitable for outdoor and industrial environment use, IP44

• Integrated hinged lid

• Plastic labelling field

• Design compatible with common switch ranges made by switch manufacturers

• Technical properties:

• Housing material: Thermoplastic, ABS UL 94V-0

• Lid material: Thermoplastic, ABS UL 94V-0

• Mounting inlet material: Thermoplastic, ABS UL 94V-0

• Physical properties:

• Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

Package content

• Data socket (DN-93844-OD)

• Use for 2 Keystone Modules (DN-93844-OD-1)
