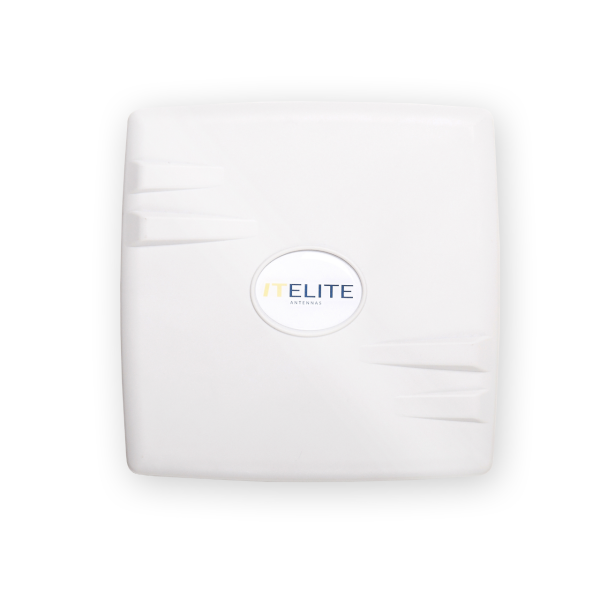

IT Elite RadioAntenna 2.4GHz Dual H&V 12dBi
SKU
MRA24012DUAL
42,09 €
34,22 €
Antenna with multipurpose enclosure working in 2.4 GHz band with two independent directional panel antennas with 12 dBi gain with vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme dual configuration.
Sem stock
Contacte-nos para previsão
ey Features:
|
Applications:
|
Description:
The range includes weatherproof outdoor enclosure with panel antenna and enough compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with special cable gland connector with an easy connection to Internet Network. Ethernet cable can be plugged in without removing the RJ45. Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as small base stations. Inside the enclosure are suitable posts for Mikrotik RouterBOARS 411 and 711 series.
| Electrical Properties | |
| Frequency | 2.4 - 2.5 GHz |
| Gain | 2x12dBi |
| Polarization | dual H&V |
| Beamwidth deg horizontal | 38° |
| Beamwidth deg vertical | 60° |
| VSWR | <2 |
| Impedance | 50 ohm |
| Front to back ratio | > 35 dB |
| Lightning protection: | DC ground |
| Enclosure Properties | |
| Technology: | Microstrip |
| Material: | UV protected |
| Colour: | Grey |
| Ingress Protection (EN 60529): | IP 67 |
| Min temperature: | -40°C / -40°F |
| Max temperature: | 80°C / 176°F |
| Mechanical Properties | |
| Compatible with: | RB411 and RB433 series |
| Input Connector | 2xUFL pigtail (or MMCX optional) |
| Enclosure Connector | Cable gland |
| Outsite Dimensions | 180x180x45mm / 7,2x7,2x1,8" |
| Weight | 0,6kg / 1,3lbs |
