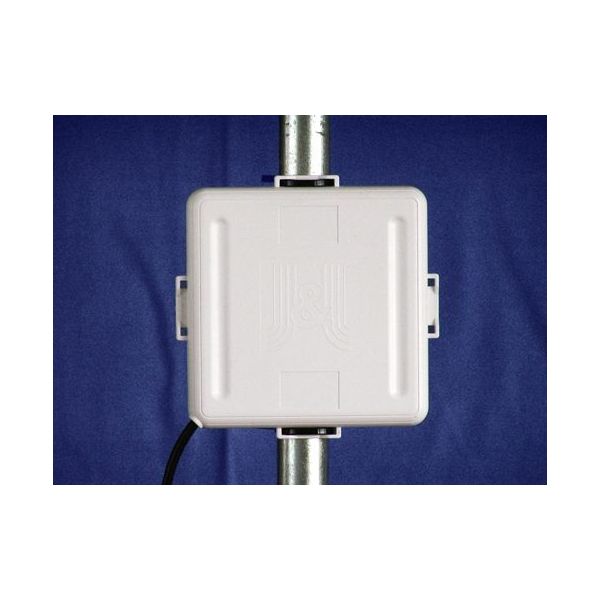

JIROUS ANTENA PLANAR 2.4GHz 9dBi - JPA-9P3

SKU

JPA9P3

16,90 € 13,74 €

Antena com duas abraçadeiras de serrilha e cabo de 3m com conector RP-SMA Macho.

Sem stock

Contacte-nos para previsão

Panel antenna JPA-9

Usage:

Perfect panel antenna for demanding users
The lowestprice on the market with a quality guarantee
Outdoor and indoor usage
Client antenna
No other transition and cables - connector RP-SMA - gild
With provided adhesive set it is possible to stick on windows outside or inside or on other smooth surface (Some modern windows have large attenuation - it is necessary to install outside.)
You can count attainable distance from section of calculation

Technical parameters

Frequency range	2,4 - 2,485 GHz
Gain	9 dBi ± 0,5
VSWR cable _3m	≤ 1,6
VSWR cable _0,5m	≤ 2,0
Beamwith	65° (-3dB) on both planes
Connector	RP-SMA gild
Size	123 x 123 x 13 mm
Polarization	horizontal or vertical according to position
Cover	UV steady plastic ABS
Attenuation of cable	0,55 dB/m

We deliver the antenna in sets with holders:

JPA-9T with holder for mast ø19 - 54 mm
JPA-9S with holder for walls (window frames,...)
JPA-9L with adhesice set for windows including degreasing serviette - everything from 3M quality
JPA-9P with plastic, UV rezistant slips for installation on mast - low-cost version
All versions with 0,5 or 3 m cable
Other lengths of cable on order min. 300 pcs
