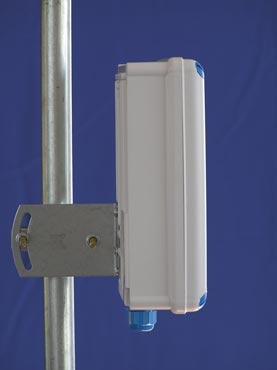

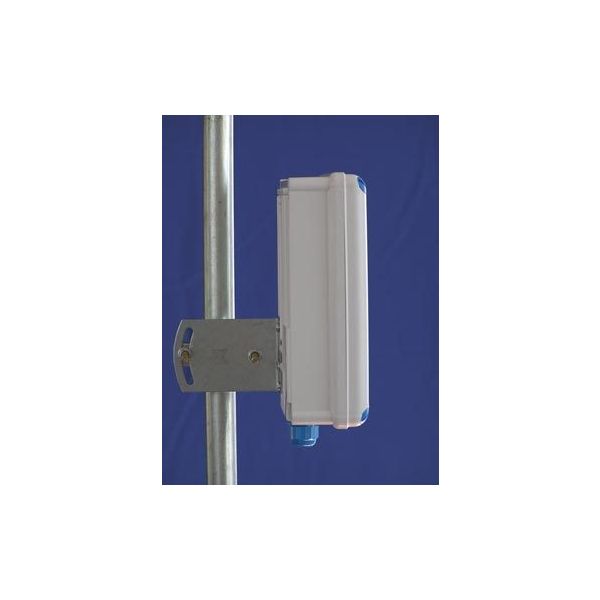

JIROUS Antena Planar 5Ghz 17dBi MIMO Caixa Exterior

Usage:

• GentleBOX JC-220 contains itegrated dual-polarized 5 GHz antenna
• Antenna layout is gold plated
• GentleBOX JC-220 is optimal solution for clients in range 5 GHz
• GentleBOX is inclusive and ideal outdoor box for AP. RouterBOARD and other electronics
• With GentleBOX you can forget measuring and drilling! Everything is prepared
• With GentleBOX you can forget seeking for cable bush and assembling material! Everthing is enclosed. You will require 1 flat and 2 (PH1 and PH2) cross-shaped screwdrivers and spanner "10"
• In GentleBOXwelts and holes are prepared for easy instalation of RouterBOARD or other electronics including screws and plastic piers
• outdoor and indoor usage
• simplified mounting of RB711
• link point-point

Technical parameters

Frequency range	5,1 - 5,9 GHz
Gain5,4-5,9 GHz	17 dBi ±0,5
VSWR5,4-5,9 GHz	≤ 1,9
Beamwith-3 dB	20/20°
Connector on cable	UF-L or MMCX or R-SMA according to version
Outer size	203 x 203 x 65 mm
Inner size	186 x 186 x 53 mm
Polarization	horizontal and vertical
Material	UV steady plastic ABS, Polyamide
Instalation for mast	ø19 - 54 mm
