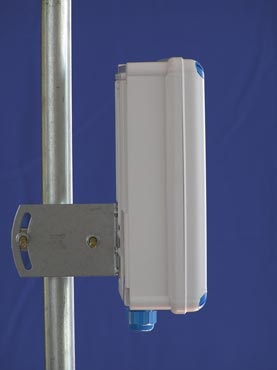

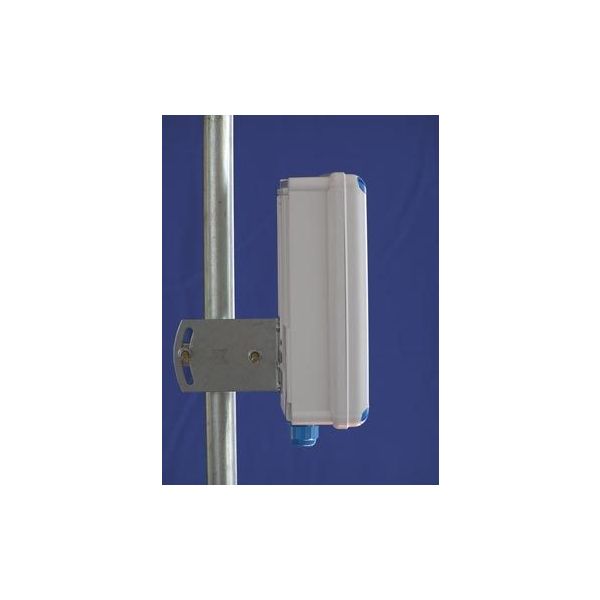

JIROUS Antena Planar 5Ghz 19dBi em Caixa Exterior GentleBOX

SKU

JC219MMCXR

35,52 € 28,88 €

Sem stock

Contacte-nos para previsão

GentleBOX JC-219 contains itegrated 5 GHz antenna with binomial distribution of amplidude for optimal side lobe suprresion and itegrated overvoltage protection
GentleBOX JC-219 is optimal solution for clients in range 5 GHz
GentleBOX is inclusive and ideal outdoor box for AP. RouterBOARD and other electronics
With GentleBOX you can forget measuring and drilling! Everything is prepared
With GentleBOX you can forget seeking for cable bush and assembling material! Everthing is enclosed. You will require 1 flat and 2 (PH1 and PH2) cross-shaped screwdrivers and spanner "10"
In GentleBOXwelts and holes are prepared for easy instalation of RouterBOARD or other electronics including screws and plastic piers
outdoor and indoor usage
simplified mounting of RB411
link point-point
you can count attainable distance from section of calculation
Gold plated layout for long life time

Frequency range	5,1 - 5,95 GHz
Gain	18,5 dBi ±0,5
VSWR	≤ 1,8
Sidelobe level suppression	≥ 17 dB
Front to back ratio	≥ 30 dB
Beamwith_{-3 dB}	20°
Connector on cable	MMCX or UF-L according to version
Outer size	203 x 203 x 65 mm
Inner size	186 x 186 x 53 mm
Polarization	horizontal or vertical according to position of cover
Material	UV steady plastic ABS, Polyamide
Instalation for mast	ø19 - 54 mm
