JIROUS ANTENA SETORIAL 5GHz 16dBi Duplex - JSC-16-60 S MIMO

SKU

JSC-16-60SDX

73,55 € 59,80 €

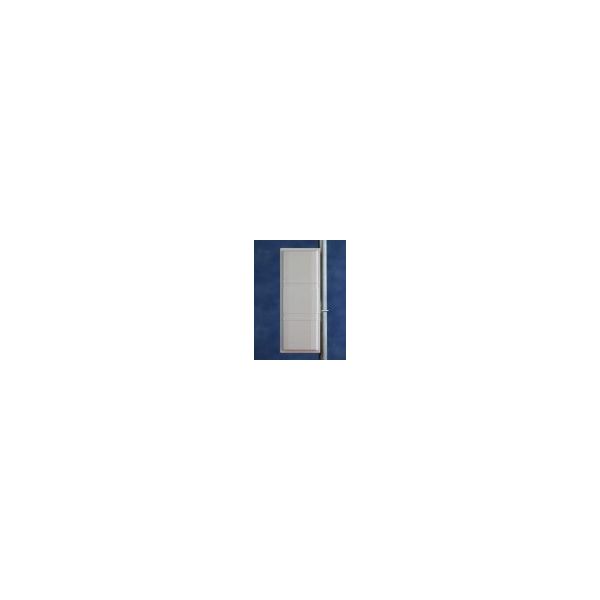

Dual-polarized sector antenna JSC-16-60 MIMO

Em Stock

Entrega prevista 09 de dezembro

Dual-polarized sector antenna JSC-16-60 MIMO

Diagram

TEXT START

Specification:

layout for long life time

dual-polarized sector antenna with vertical and horizontal polarization

integrated overvoltage protection

ready for difficult conditions

vertical beamwith 8-9° for perfect coverage

the distance can be calculated in the

section of calculation
Gold plated layout for long life time
layout for long life time

Technical parameters:

Frequency range	5,4 - 5,85 GHz
Gain	16,0 dBi ±0,6
VSWR	≤ 1,5
Beamwidth
azimuth _-3dB	_60°
_{azimuth -6dB}	_90°
_{elevation -3dB}	_8,5°
_{Isolation between connectors}	_30dB
_{Types of Connectors}	R-SMA, N - Female, gilt contact, dielektrikum PTFE (Teflon®)
_{Size - without connectors}	_{128 x 326 x 30 mm}
_Cover	_{UV steady plastic ABS}
_Back	_{Sheet metal from aluminium alloy + galvanic coating}
_{Holder on the mast}	_{ø 19 - 54 mm}

_Accessories:

_{GentleBOX JR-200}
_GentleCLIP_{for the mounting Ubiquiti Rocket M5}

_Package:

1 piece including holder on the mast

Size and EAN codes

_{Packing and EAN codes}_{TEXT END}
