LHG 5 outdoor light device 27dBi L3
SKU
RBLHG-5HPND-XL
80,55 €
65,49 €

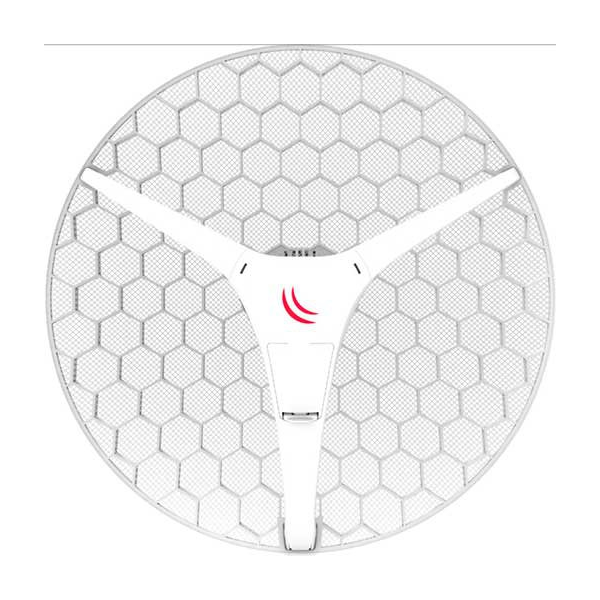

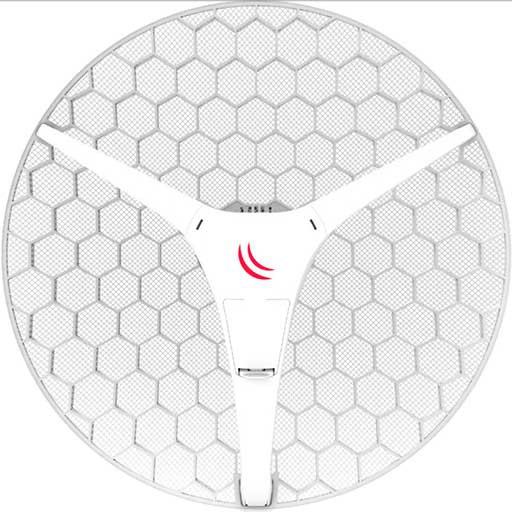

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and 630mW TX output power, designed to reach up to 40km in point-to-point setups at full speed.
Sem stock
Contacte-nos para previsão
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
General
| Details | |
|---|---|
| Product code | RBLHG-5HPnD-XL |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 550 x 245 mm; |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 70° C |
Powering
| Details | |
|---|---|
| Max Power consumption | 7W |
| Number of DC inputs | 1 |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
Wireless
| Details | |
|---|---|
| Antenna gain dBi for 5 GHz | 27 |
| Number of chains | 2 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz standards | 802.11a/n |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
