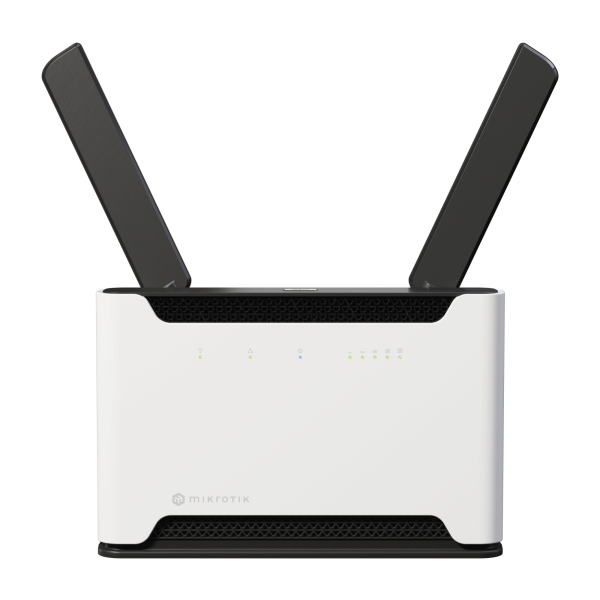

MikroTik Chateau LTE6 ax with RouterOS L4

Chateau LTE6 ax

Product Specification

• Product code: S53UG+5HaxD2HaxD-TC&FG621-EA

• CPU: Quad-Core IPQ-6010 1.8 GHz

• CPU architecture: ARM 64bit

• Size of RAM: 1 GB

• RAM type: DDR3L

• Storage: 128 MB, NAND

• Number of 1G Ethernet ports: 4

• Number of 2.5G Ethernet ports: 1

• Micro SIM slots: 1

• USB port: 1 (2.0 type A)

• Switch chip model: IPQ-6010

• Wireless interface model: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)

• Wireless: 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain

• Antenna gain: 2.4 GHz - 2 dBi, 5 GHz - 4 dBi

• LTE category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)

• LTE modem: FG621-EA

• TAC: 86335904

• MIMO DL: 2x2

• MIMO UL: 1x1

• LTE FDD bands:1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)

• LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

• 3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)

• 3G Bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

• Dimensions: 240 x 156 x 44 mm

• Operating system: RouterOS v7, License level 4

• Operating temperature: -40°C to +70°C

• Number of DC inputs: 1

• DC jack input Voltage: 12-28 V

• Power adapter nominal voltage: 24 V

• Power adapter nominal current: 1.2 A

• Max power consumption without attachments: 13 W

• Max power consumption: 17 W
