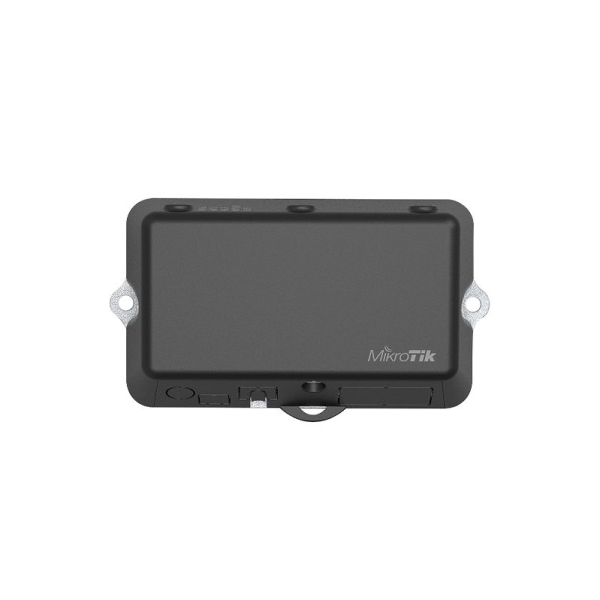

MikroTik ltAP Mini Dual-Chain 1.5dBi without modem

SKU
RB912R-2ND-LTM
73,80 € 60,00 €
Small weatherproof wireless access point with LTE antennas, two SIM slots, integrated GPS and miniPCI-e slot

Em Stock

Entrega prevista 04 de dezembro

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).



Specifications

Details
Product code RB912R-2nD-LTm
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 139 x 77 x 28,5 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C .. +70°C
Suggested price $89.00


Powering

Details
Max Power consumption 4W
MicroUSB input Voltage 5-5 V
PoE in 802.3af/at
PoE in input Voltage 10-57 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-30 V


Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531


Ethernet

Details
10/100 Ethernet ports 1


Peripherals

Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
