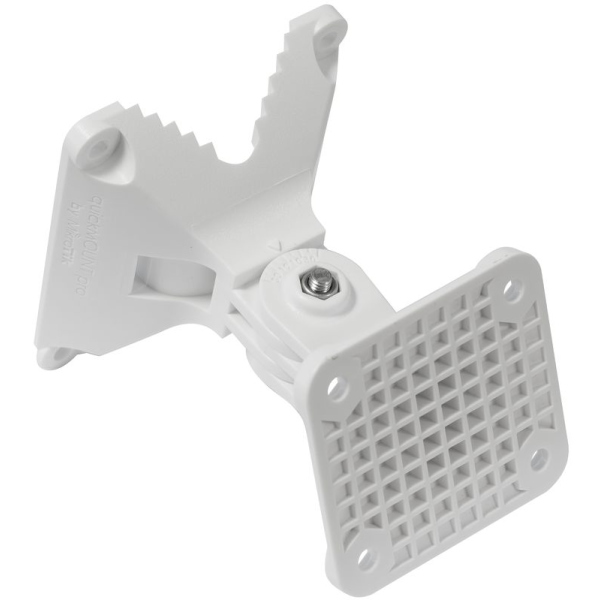

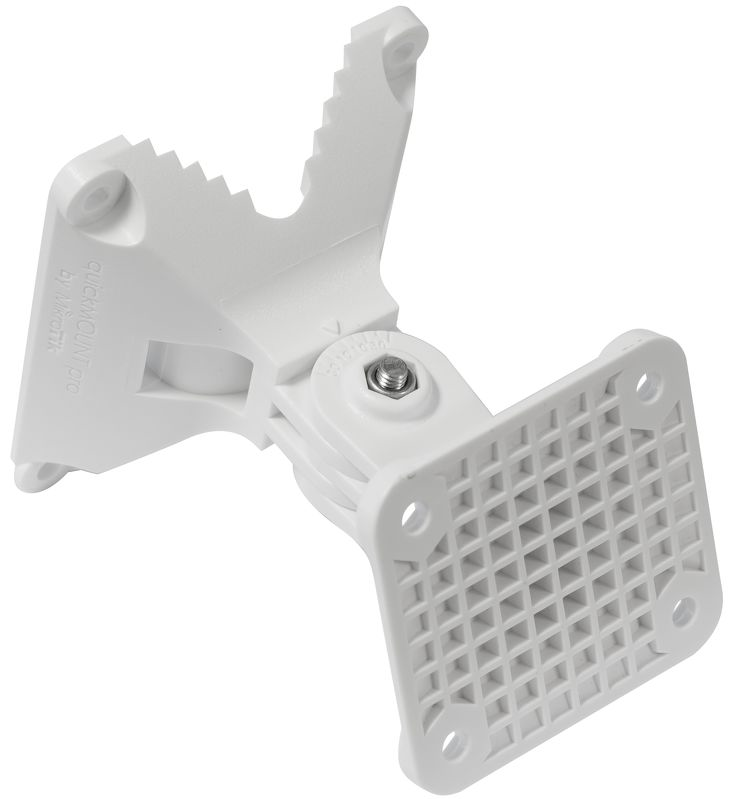

MikroTik quickMOUNT pro LHG Wall Mount Adapter

The quickMOUNT pro LHG is a advanced wall or pole mount adapter for our new LHG antennas.

The quickMOUNT pro gives possibility to turn antenna within 140° both in horizontal and vertical plane. With the quickMOUNT pro

it is possible to perfectly set antenna alignment using integrated graduated scale.

• Dimensions 95 x 88 x 112 mm (3.75 x 3.5 x 4.4 in.)
• Tube diameter: 35 mm (1.4 in.)
• Max tube diameter to which mount can be attached: 65 mm (2.56 in.)
• Maximum antenna weight: 1.5 kg
• Maximum wind load: 100 N
• Turn angle for MikroTik products: 140°
• Compatible devices: LHG 5
