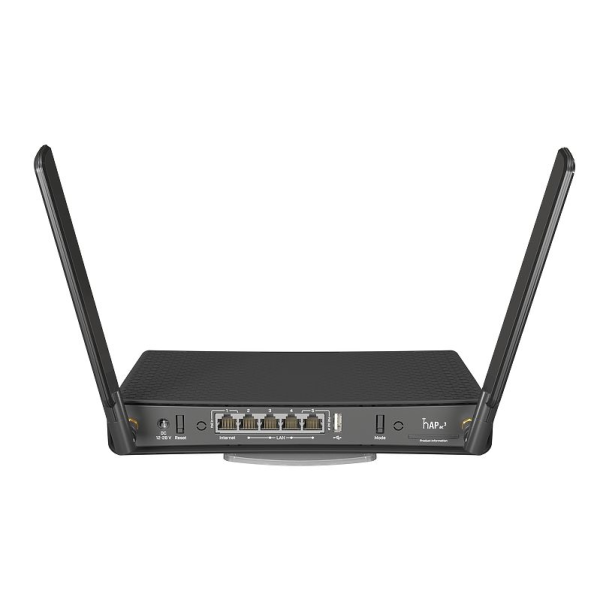

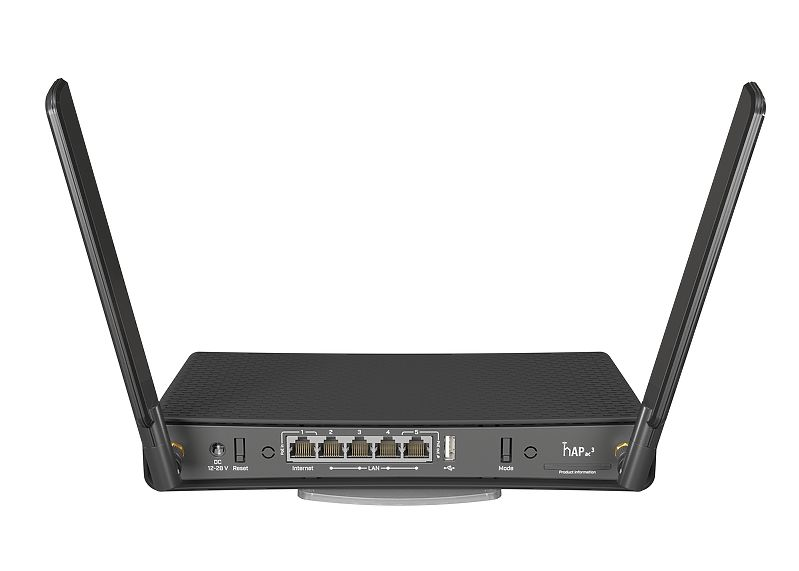

MikroTik RouterBOARD hAP ac3

RBD53IG-5HACD2HND

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Product Specification

• Product code: RBD53iG-5HacD2HnD

• Architecture: ARM 32bit

• CPU: IPQ-4019

• CPU core count: 4

• CPU nominal frequency: 716 MHz

• Dimensions: 251 x 129 x 39 mm

• License level: 4

• Size of RAM: 256 MB

• Storage size: 128 MB

• Storage type: NAND

• Tested ambient temperature: -40°C to 70°C

• Wireless 2.4 GHz Max data rate: 300 Mbit/s

• Wireless 2.4 GHz number of chains: 2

• Wireless 2.4 GHz standards: 802.11b/g/n

• Antenna gain dBi for 2.4 GHz: 3

• Wireless 2.4 GHz chip model: IPQ-4019

• Wireless 2.4 GHz generation: Wi-Fi 4

• Wireless 5 GHz Max data rate: 867 Mbit/s

• Wireless 5 GHz number of chains: 2

• Wireless 5 GHz standards: 802.11a/n/ac

• Antenna gain dBi for 5 GHz: 5.5

• Wireless 5 GHz chip model: IPQ-4019

• Wireless 5 GHz generation: Wi-Fi 5

• AC speed: AC1200

• 10/100/1000 Ethernet ports: 5

• Number of 1G Ethernet ports with PoE-out: 1

• Number of USB ports: 1

• USB Power Reset: Yes

• USB slot type: USB type A

• Max USB current (A): 1

• PoE in: Passive PoE

• PoE in input Voltage: 18-28 V

• Number of DC inputs: 2 (DC jack, PoE-IN)

• DC jack input Voltage: 12-28 V

• Max power consumption: 30 W

• Max power consumption without attachments: 12 W

• FAN count: Passive

• PoE-out ports: Ether5

• PoE out: Passive PoE

• Max out per port output (input < 30 V): 0.5 A

• Max total out (A): 0.5 A

• Certification: CE, FCC, IC, EAC, ROHS

• Mode button: Yes
