MikroTik RouterBOARD NETMETAL5 802.11a/n/ac, RouterOS L4

SKU
RB921UAGS-5SHPACD-NM
151,66 € 123,30 €
Dual chain 5GHz integrated 802.11ac AP/Backbone/CPE, 2xRPSMA connectors, high TX power, Gigabit Ethernet, waterproof metal enclosure

Em Stock

Entrega prevista 09 de outubro

This NetMetal version is equipped with super high power 1.3W 2x2 dual chain 802.11a/n/ac wireless and two RP-SMA connectors for external antennas

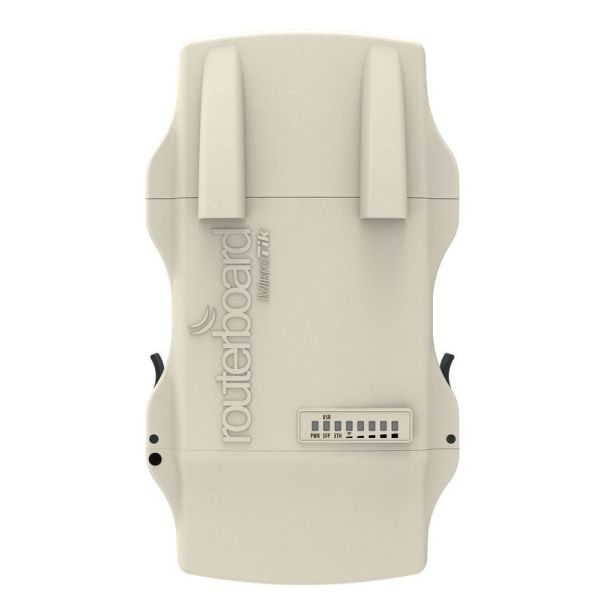

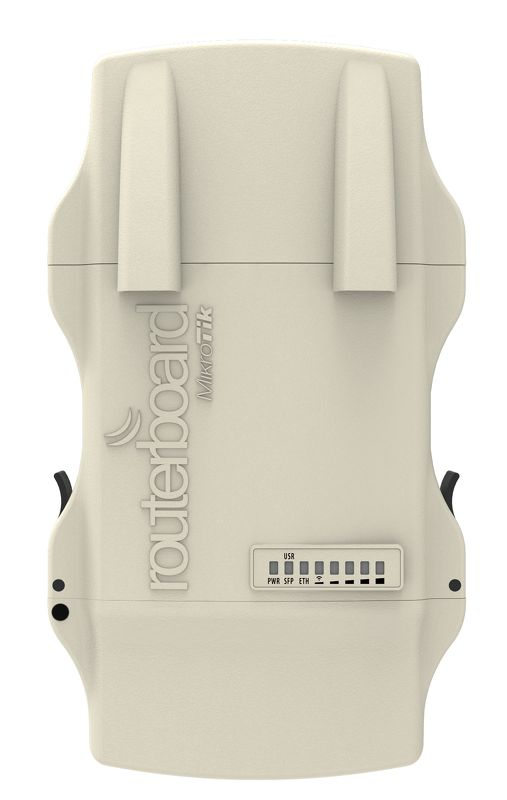

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. The enclosure is sealed to conform with the IP66 standard.



Specifications

Details
Product code RB921UAGS-5SHPacD-NM
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 143x247x48mm (PCB)
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C



Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 17 W
Max power consumption without attachments 17W


Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9882


Ethernet

Details
10/100/1000 Ethernet ports 1


Fiber

Details
SFP DDMI yes
SFP ports 1


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
