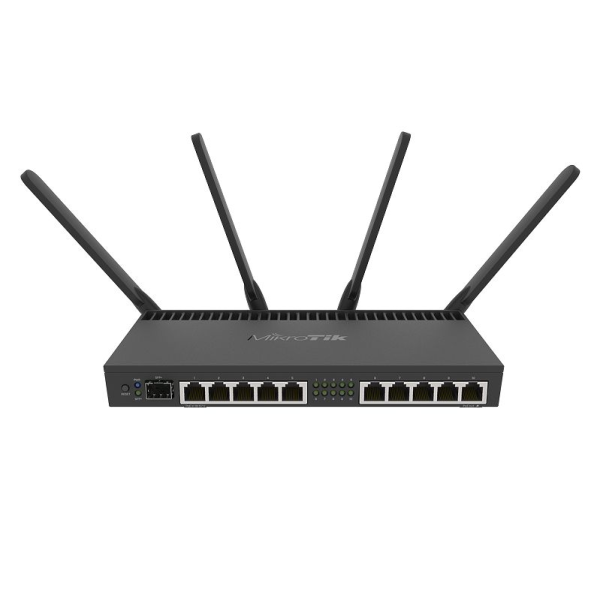

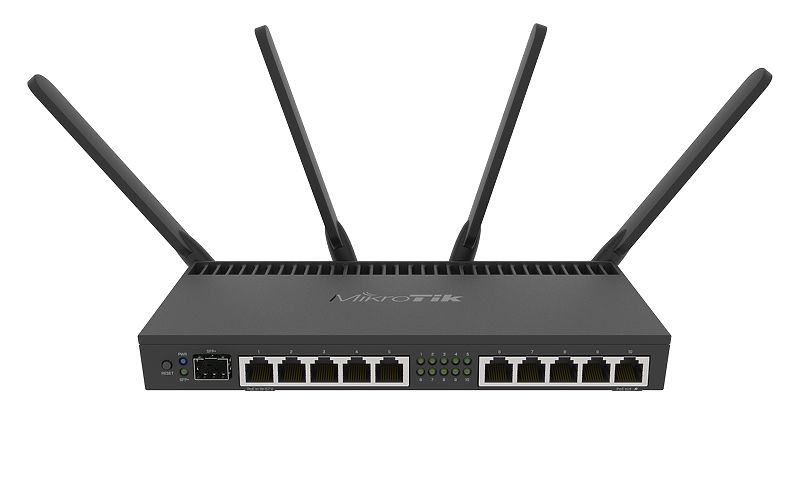

Mikrotik RouterBoard RB4011iGS+5HacQ2HnD-IN (Level 5) Rackmount

RB4011IGS+5HACQ2HND-IN

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

Product Specification

• Product code: RB4011iGS+5HacQ2HnD-IN

• Architecture: ARM 32bit

• CPU: AL21400

• CPU core count: 4

• CPU nominal frequency: 1.4 GHz

• Dimensions: 228 x 120 x 30 mm

• License level: 5

• Size of RAM: 1 GB

• Storage size: 512 MB

• Storage type: NAND

• Tested ambient temperature: -40°C to 45°C

• PoE in: Passive PoE

• PoE in input Voltage: 18-57 V

• Number of DC inputs: 2 (DC jack, PoE-IN)

• DC jack input Voltage: 12-57 V

• Max power consumption: 44 W

• Max power consumption without attachments: 23 W

• PoE-out ports: Ether10

• PoE out: Passive PoE up to 57V

• Max out per port output (input < 30 V): 600 mA

• Max out per port output (input > 30 V): 420 mA

• Max total out (A): 600 mA

• AC speed: AC2000

• Wireless 5 GHz Max data rate: 1733 Mbit/s

• Wireless 5 GHz number of chains: 4

• Wireless 5 GHz standards: 802.11a/n/ac

• Antenna gain dBi for 5 GHz: 3

• Wireless 5 GHz chip model: QCA9984

• Wireless 5 GHz generation: Wi-Fi 5

• Wireless 2.4 GHz Max data rate: 300 Mbit/s

• Wireless 2.4 GHz number of chains: 2

• Wireless 2.4 GHz standards: 802.11b/g/n

• Antenna gain dBi for 2.4 GHz: 3

• Wireless 2.4 GHz chip model: R11e-2HnD

• Wireless 2.4 GHz generation: Wi-Fi 4

• 10/100/1000 Ethernet ports: 10

• SFP+ ports: 1

• MiniPCI-e slots: 1

• Serial port: RJ45

• PCB temperature monitor: Yes

• Voltage Monitor: Yes

• Certification: CE/RED, FCC, IC, EAC, ROHS
