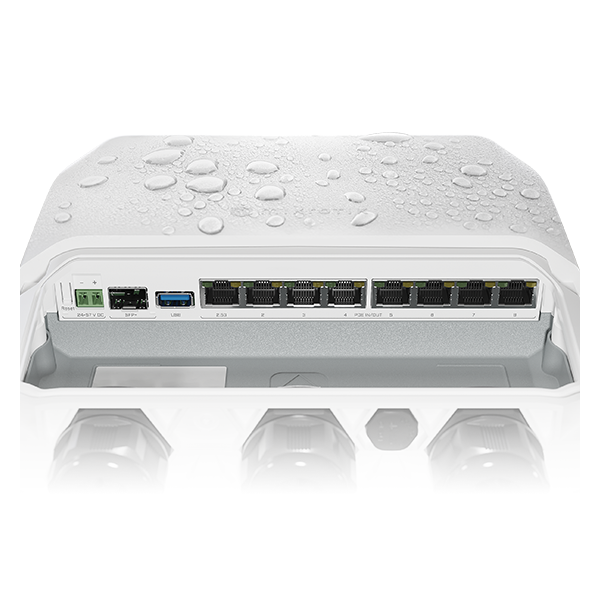

Mikrotik RouterBoard RB5009UPr+S+OUT

RB5009UPr+S+OUT

Product Specification

• Product code: RB5009UPr+S+OUT

• CPU Quad-Core: 88F7040 1.4 GHz

• CPU architecture: ARM 64bit

• Size of RAM: 1 GB

• RAM type: DDR4

• Storage: 1 GB, NAND

• Number of 1G Ethernet ports: 7

• Number of 2.5G Ethernet ports: 1

• Number of 10G SFP+ ports: 1

• USB: 1 USB 3 type A

• Operating system: RouterOS v7, License level 5

• Switch chip model: 88E6393

• Dimensions: 222 x 239 x 57 mm

• Operating temperature: -40°C to +70°C

• PoE-in: 802.3af/at

• PoE-Out: 802.3af/at Same voltage as supplied via 2-pin terminal - Passive PoE or 802.3af/at Compatible (if 44–57V PSU used)

• PoE-Out ports: Ether1 - Ether8, max out per port output (input < 30 V): 620 mA, max out per port output (input > 30 V): 420 mA

• Smart PoE: Controller

• Max total out: 2.59 A

• Total output power: 130 W

• Total output current: 2.28 A

• Number of DC inputs: 2

• Supported input voltage: 24-57 V (PoE in) 24-57 (2-pin terminal)

• Max power consumption (without attachments): 15 W

• Max power consumption: 150 W

•
