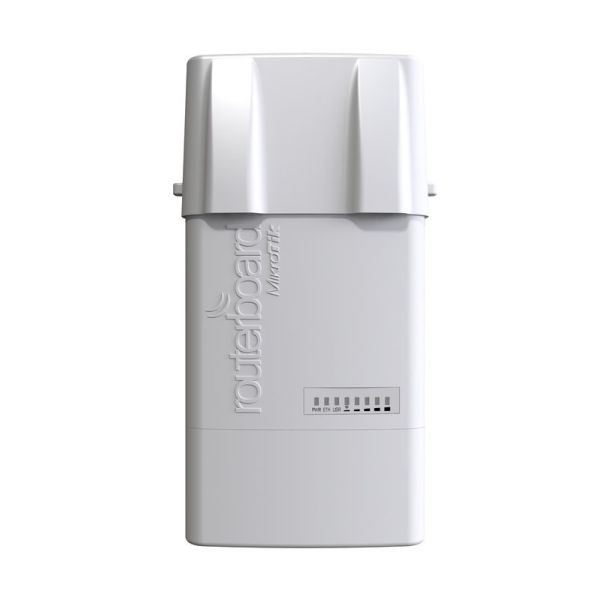

NetBox 5

The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

Product specifications

Details
Product code	RB911G-5HPacD-NB
CPU nominal frequency	720 MHz
CPU core count	1
Size of RAM	128 MB
10/100 Ethernet ports	None
10/100/1000 Ethernet ports	1
MiniPCI slots	0
MiniPCI-e slots	0
Wireless chip model	QCA9882-BR4A-R
Wireless standards	802.11a/n/ac
Number of USB ports	0
Power Jack	0
Supported input voltage	8 V - 30 V
PoE in	Yes
PoE out	No
Voltage Monitor	Yes
CPU temperature monitor	No
PCB temperature monitor	Yes
License level	4
Antenna gain DBI	No
Current Monitor	No
CPU	QCA9557-AT4A-R
Max Power consumption	11.5 W
SFP ports	None
SFP+ ports	None
Number of chains	2
Serial port	None

Wireless specifications

5 GHz
	TX	RX
6MBit/s	31	-96
54MBit/s	27	-81
MCS0	30	-96
MCS7	27	-77
MCS9	22	-72
