MikroTik RouterBOARD RB912UAG-5HPnD-OUT 802.11a/n, RouterOS L4

SKU
BASEBOX5
78,76 € 64,03 €
Outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture.

Sem stock

Contacte-nos para previsão

BaseBox5

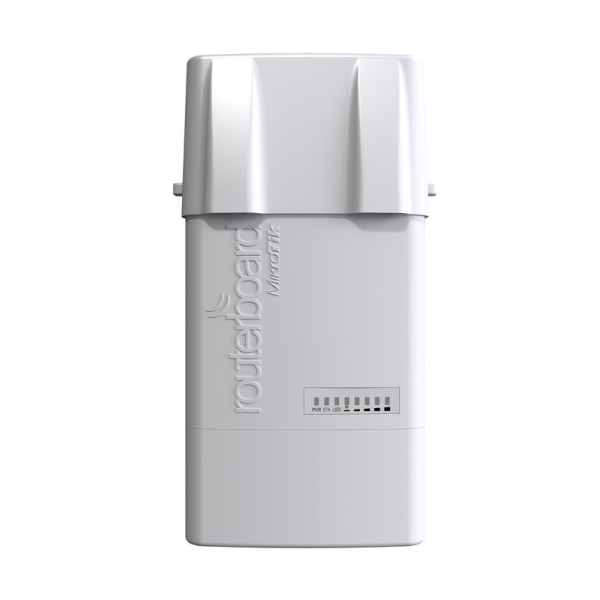

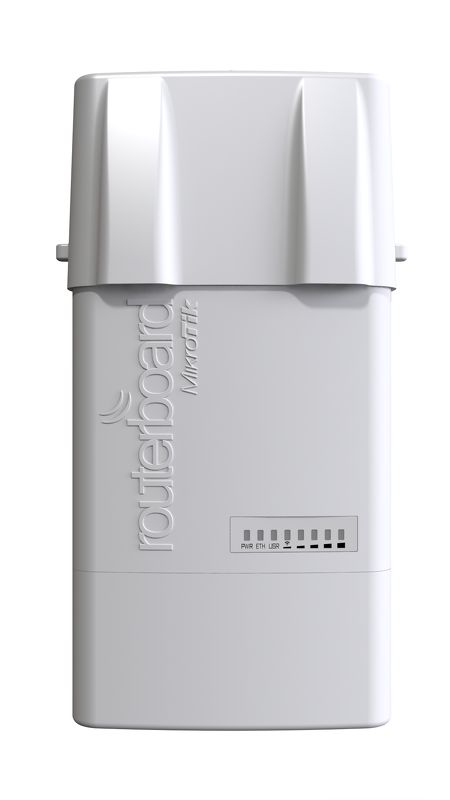

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

Product specifications

Details
Product code RB912UAG-5HPnD-OUT
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
Architecture MIPS-BE
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model AR9342-BL1A
Wireless standards 802.11a/n
Number of USB ports 1
Power Jack Yes
802.3af support No
PoE 8-30V DC
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 246x135x50mm
Operating System RouterOS
Operating temperature range -30C to +60C
License level L4
Current Monitor No
TX power 30dBm
CPU AR9342-BL1A
Max Power consumption 14W at 24v
SFP ports 0
USB slot type USB type A
Number of chains 2
