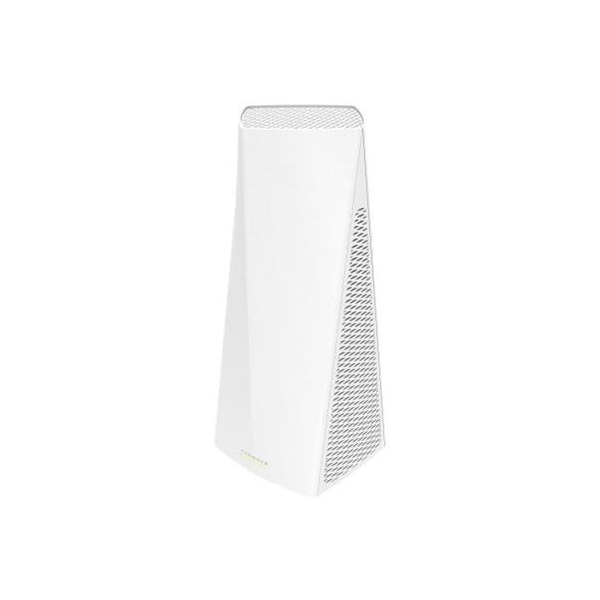

MikroTik RouterBOARD RBD25G-5HPacQD2HPnD Audience L4

RBD25G-5HPACQD2HPND

Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience devices can deliver in grand style – even in the biggest houses!

Audience is a tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network – with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the whole premises. The initial setup is also very simple – download the iOS or Android MikroTik app, it will connect to the router and guide you through a quick setup process.

In some cases a single Audience unit might be able to replace several other routers – in our tests it covered 1858 m² easily. It depends on the amount of obstacles, Wi-Fi clients and interference, so results may vary.

Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.

Order your Audience today and start living in the future. The future of easy and elegant networking.

Product Specification

• Product code: RBD25G-5HPacQD2HPnD

• Architecture: ARM 32bit

• CPU: IPQ-4019

• CPU core count: 4

• CPU nominal frequency: 716 MHz

• Dimensions: 100 x 235 x 97 mm

• License level: 4

• Size of RAM: 256 MB

• Storage size: 128 MB

• Storage type: NAND

• Tested ambient temperature: -40°C to 60°C

• PoE in: Passive PoE

• PoE in input Voltage: 24-57 V

• Number of DC inputs: 2 (DC jack, PoE-IN)

• DC jack input Voltage: 12-57 V

• Max power consumption: 27 W

• Max power consumption without attachments: 27 W

• Wireless 2.4 GHz Max data rate: 300 Mbit/s

• Wireless 2.4 GHz number of chains: 2

• Wireless 2.4 GHz standards: 802.11b/g/n

• Antenna gain dBi for 2.4 GHz: 3.5

• Wireless 2.4 GHz chip model: IPQ-4019

• Wireless 2.4 GHz generation: Wi-Fi 4

• Wireless 5 GHz Max data rate: 867 Mbit/s

• Wireless 5 GHz number of chains: 2

• Wireless 5 GHz standards: 802.11a/n/ac

• Antenna gain dBi for 5 GHz: 4.5

• Wireless 5 GHz chip model: IPQ-4019

• Wireless 5 GHz generation: Wi-Fi 5

• Wireless 5 GHz Max data rate: 1733 Mbit/s

• Wireless 5 GHz number of chains: 4

• Wireless 5 GHz standards: 802.11a/n/ac

• Antenna gain dBi for 5 GHz: 4.5

• Wireless 5 GHz chip model: QCA9984

• Wireless 5 GHz generation: Wi-Fi 5

• 10/100/1000 Ethernet ports: 2

• Certification & Approvals: CE/RED, FCC, IC, EAC, ROHS

•
