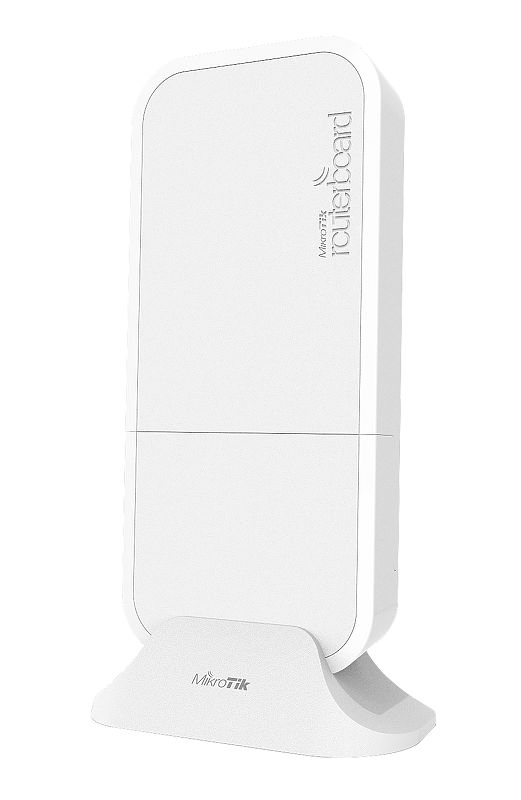

MikroTik RouterBOARD wAP Outdoor that supports 2G, 3G, 4G, LTE
SKU
RBWAPR-2ND
129,11 €
104,97 €
wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity.
Em Stock
Entrega prevista 18 de setembro
wAP LTE kit
The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
Product specifications
| Details | |
|---|---|
| Product code | RBwAPR-2nD&R11e-LTE |
| 10/100 Ethernet ports | 1 |
| 2G Category | Class12 |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| Antenna gain dBi for 2.4 GHz | 2 |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| DC jack | 9-30 V |
| Dimensions | 185 x 85 x 30 mm |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
| License level | 4 |
| Max Power consumption | 8W |
| MiniPCI-e slots | 1 |
| Number of DC inputs | 1 |
| Number of chains | 2 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | Passive PoE |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +60°C tested |
| Voltage Monitor | Yes |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
