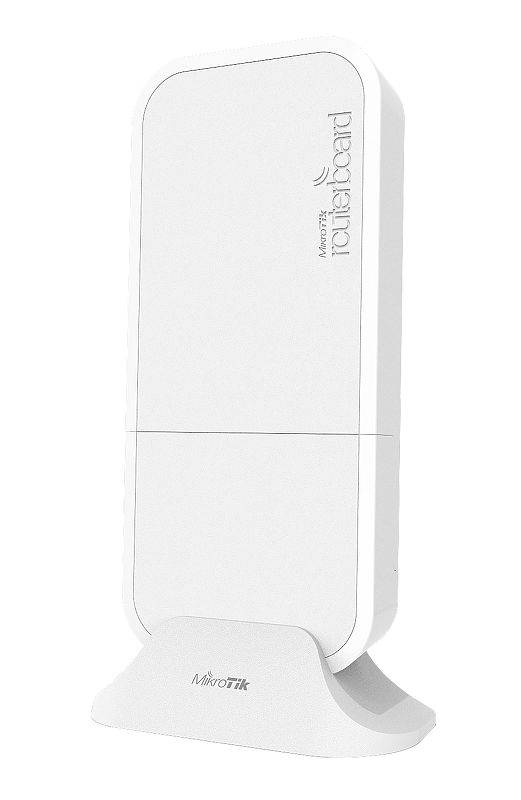

MikroTik RouterBOARD wAP R with miniPCI slot

RBwAPR

The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.

Product Specification

• Product code: RBwAPR-2nD

• Architecture: MIPSBE

• CPU: QCA9531

• CPU core count: 1

• CPU nominal frequency: 650 MHz

• Dimensions: 185x85x30 mm

• RouterOS license: 4

• Operating System: RouterOS

• Size of RAM: 64 MB

• Storage size: 16 MB

• Storage type: FLASH

• MTBF: Approximately 100'000 hours at 25C

• Tested ambient temperature: -40°C to 60°C

• 10/100 Ethernet ports:1

• Number of SIM slots: 1 Modem (Mini SIM)

• MiniPCI-e slots: 1

• Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)

• DC jack input Voltage: 9-30 V

• Automotive input Voltage: 9-30 V

• Max power consumption: 6 W

• FAN count: Passive

• PoE in: Passive PoE

• PoE in input Voltage: 9-30 V

• Certification: CE, FCC, IC, E-MARK, EAC, ROHS

• IP: IP54

• PCB temperature monitor: Yes

• Voltage Monitor: Yes
