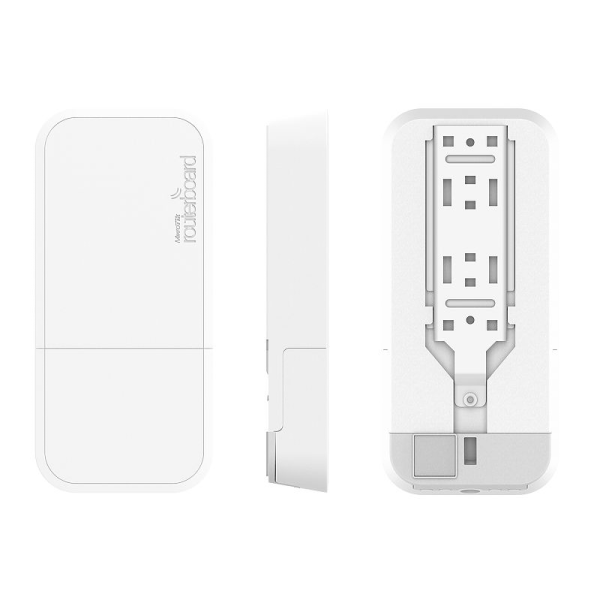

MikroTik wAP 60Gx3 AP, RBwAPG-60ad-SA, 60GHz, L4, Access Point

RBWAPG-60AD-SA

The wAP 60Gx3 AP is a new access point model for the 60 GHz spectrum. Compared with the regular wAP 60G AP, this new model has a completely new antenna array, with support for a much wider angle of coverage and is optimized specifically for multipoint operation.

The 96 antenna elements work with beamforming technology to provide connectivity for up to eight 60 GHz client devices at the same time, in a 180 degree field of view. Build a cost effective point to multipoint setup in the clean 60 GHz wireless spectrum, at a fraction of the cost.

Two wAP 60Gx3 AP units can be used in point-to-point configurations as well.

Product Specification

• Product code: RBwAPG-60ad-SA

• Architecture: ARM 32bit

• CPU: IPQ-4019

• CPU core count: 4

• CPU nominal frequency: 716 MHz

• Dimensions: 185 x 85 x 30 mm

• RouterOS license: 4

• Operating System: RouterOS

• Size of RAM: 256 MB

• Storage size: 16 MB

• Storage type: FLASH

• Tested ambient temperature: -40°C to 70°C

• MTBF: Approximately 200'000 hours at 25C

• PoE in: 802.3af/at

• PoE in input Voltage: 20-57 V

• Number of DC inputs: 2 (DC jack, PoE-IN)

• DC jack input Voltage: 12-57 V

• Max power consumption: 11 W

• FAN count: Passive

• 10/100/1000 Ethernet ports: 1

• Certification: CE, FCC, IC, EAC, ROHS
