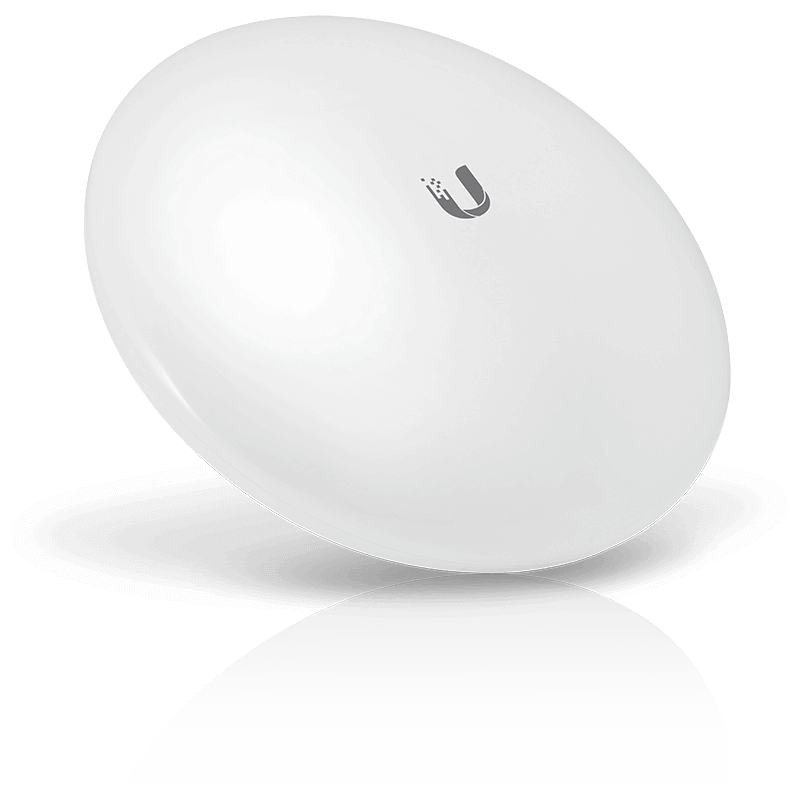

NanoBeam M2, antenna 13dBi

NBE-M2-13

Product Specification

• Dimensions:189 x 189 x 125 mm

• Weight: 0.530 kg

• Power Supply: 24V, 0.5A PoE

• Max. Power Consumption: 6W

• Operating Frequency Worldwide: 2405 - 2475 MHz

• Gain: 13 dBi

• Networking Interface: (1) 10/100 Ethernet Port

• Processor Specs: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2, 8 MB Flash

• LEDs: (1) Power, (1) LAN, (4) WLAN

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Channel Sizes: 5/8/10/20/30/40 MHz

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount (Kit Included), Wall-Mount

• Wind Loading: 45.4 N @ 200 km/h

• Wind Survivability: 200 km/h

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -40 to 80° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
