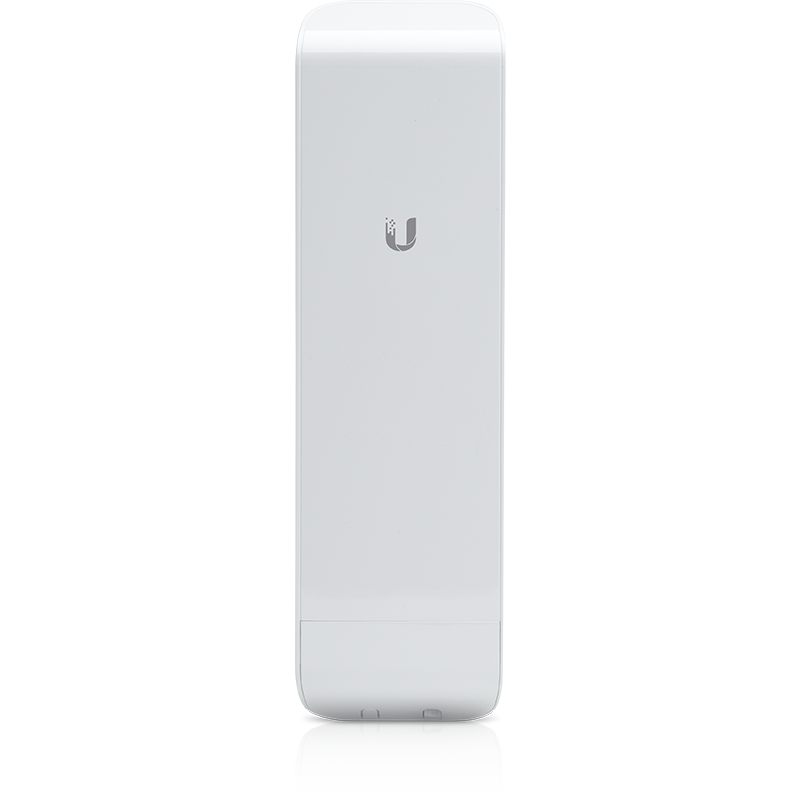

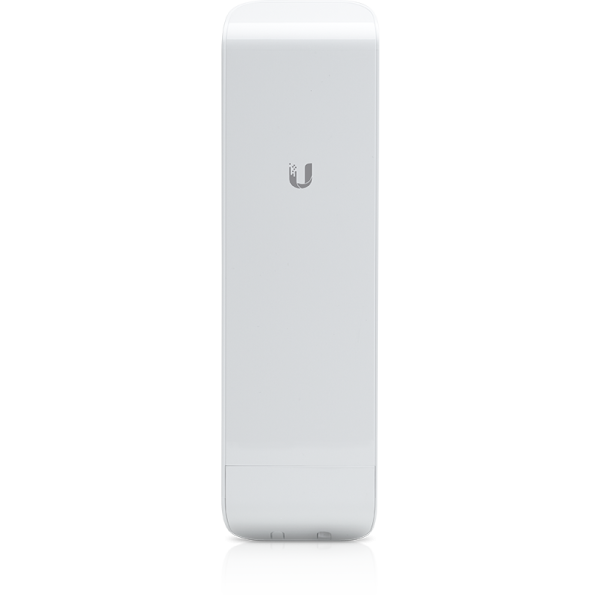

NanoStation M2 Ubiquiti AirMax CPE for 2.4GHz

NSM2

Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Product Specification

• Dimensions: 294 x 31 x 80 mm

• Weight: 400 g

• Power Supply (PoE): 24V, 0.5A

• Max. Power Consumption: 8W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Frequency: 2412-2462 MHz

• Gain: 10.4-11.2 dBi

• Networking Interface: (2) 10/100 Ethernet Ports

• Processor Specs: Atheros MIPS 24Kc, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Frequency: 2.4 GHz

• Cross-pol Isolation: 23 dB Minimum

• Max. VSWR: 1.6:1

• Beamwidth: 55° (H-pol) / 53° (V-pol) / 27° (Elevation)

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

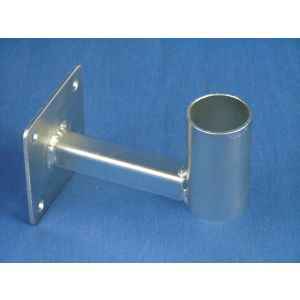

• Mounting: Pole-Mount (Kit Included)

• Operating Temperature: -30 to 75° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC Part 15.247, IC RS210, CE

• RoHS Compliance: Yes

• Shock & Vibration: ETSI300-019-1.4
