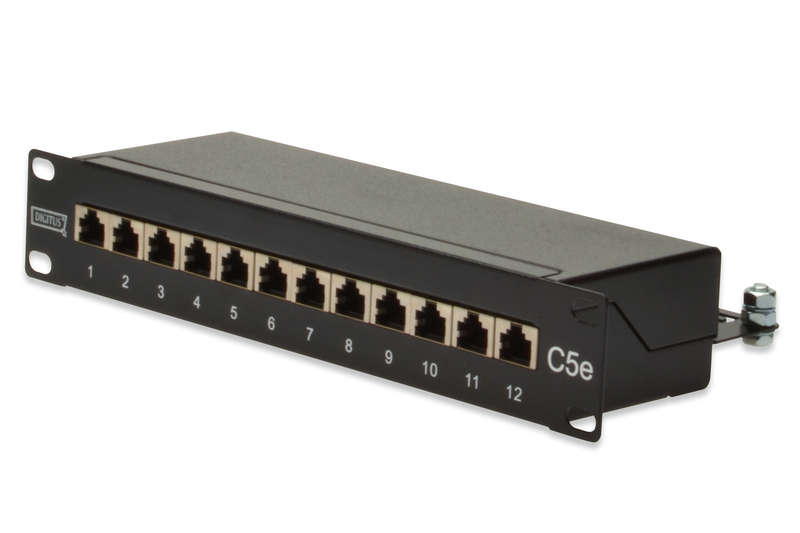

PATCH PANEL DIGITUS 10" 12P CAT5E 1U BLINDADO PRETO - DN-91512S

Melhor desempenho e melhor qualidade de ligação com a rede.

• The patch field in Class D Cat.5e meets the 10” standard for rack installation in a corresponding network cabinet and acts as a central connection point for your network cables
• A closed metal housing including central grounding connection provide shielding for the 12-port patch panel and LSA rails for mounting the network installation cables
• The patch panel is designed for 100 MHz / 1GBASE-T and also works with cables and devices in category Cat.5 thanks to backwards compatibility
• Patching in accordance with EIA/TIA 568 A & B (LSA rails color-coded accordingly) - Suitable for network cables with AWG 22-26 (solid and stranded conductors)
• Plug cycles of jack: > 750 - Tensile loading RJ45: 7.7 kg - Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) - Insulation resistance: > 500 M? - Contact resistance: < 20 m?

The CAT 5e Patch Panels for 254 mm (10") rack mount from DIGITUS® are tested and according to ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

Technical Details

• Características gerais:
• Instalação de cabo via réguas LSA, codificação de cor de acordo com EIA/TIA 568 A & B
• Ligação central à terra
• 360º cobertura revestida
• Cor: Preto (RAL 9005)
• Color: black, RAL 9005
• Units: 1
• Category: CAT 5e
• Ports: 12
