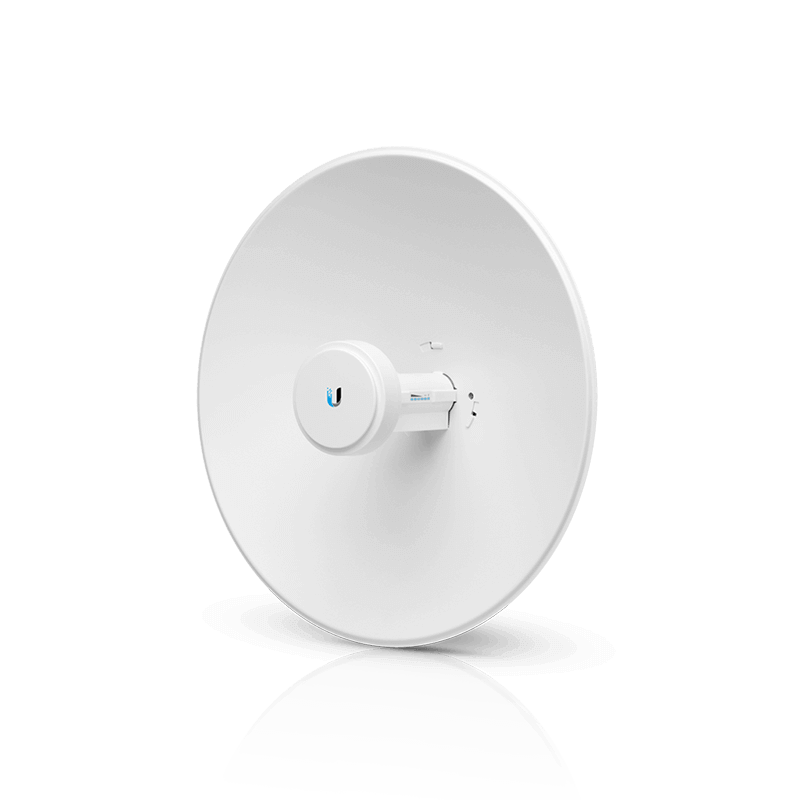

PowerBeam 2.4GHz 802.11ac High Gain 18 dbi

PBE-2AC-400

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management. The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Features:

• Highly Efficient Antenna Beam Performance

• Custom Ubiquiti® airMAX® ac Processor

• Up to 450+ Mbps Real TCP/IP Throughput

• Innovative Snap and Lock Assembly

• Proprietary InnerFeed™ Technology

Product Specification

• Dimensions: 420 x 420 x 289 mm

• Weight (mount included): 1.795 kg

• Gain: 18 dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: MIPS 74Kc

• Memory: 64 MB

• LEDs: Power, Ethernet, (4) Signal Strength

• Channel Sizes:

• PtP Mode: 10/20/40 MHz

• PtMP Mode: 10/20/40 MHz

• Enclosure Characteristics:

• Antenna Feed: Outdoor UV Stabilized Plastic

• Dish Reflector: Powder-Coated SPCC

• Max. Power Consumption: 7.5W

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)

• Wind Survivability: 200 km/h

• Wind Loading: 342.5 N @ 200 km/h

• Mounting: Pole Mounting Kit (Included)

• Operating Temperature: -40 to 70 °C

• Operating Humidity:5 to 95% Noncondensing

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

• Certifications: CE, FCC, IC

• Operating Frequency Worldwide: 2412-2472 MHz

• Management Radio Worldwide: 5150-5250 Mhz
