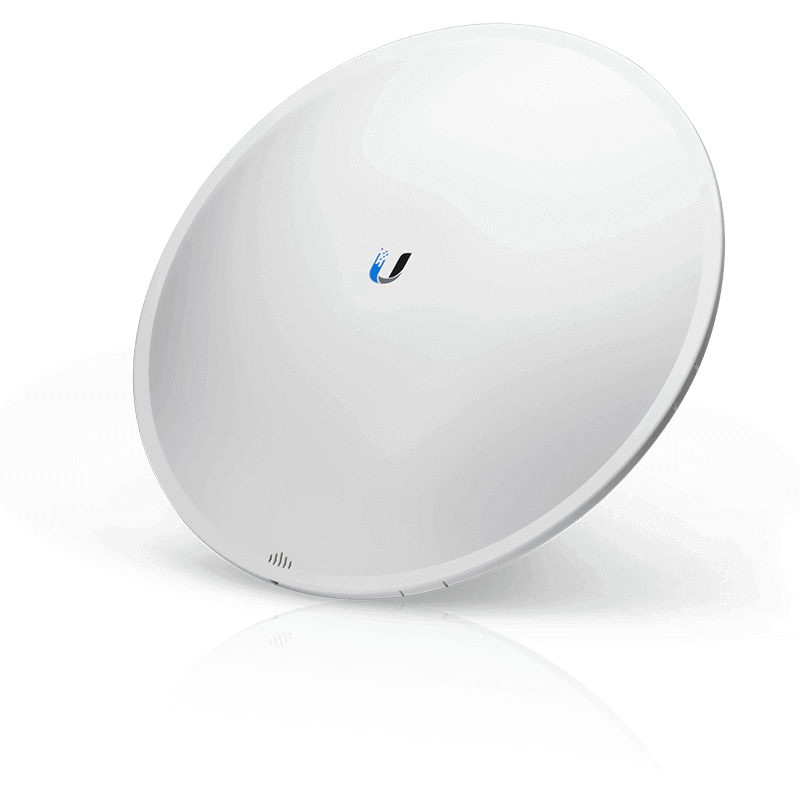

PowerBeam M5 AC, antenna 500mm 27dBi

PBE-5AC-500

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Features:

• Highly Efficient Antenna Beam Performance

• Custom Ubiquiti® airMAX® ac Processor

• Up to 450+ Mbps Real TCP/IP Throughput

• Innovative Snap and Lock Assembly

• Proprietary InnerFeed™ Technology

Product Specification

• Dimensions Radome Excluded: 520 x 520 x 308 mm

• Dimensions Radome Included: 525 x 525 x 315 mm

• Weight Radome Excluded: 2.35 kg

• Weight Radome Included: 3.15 kg

• Power Supply: 24V, 0.5A Gigabit PoE

• Max. Power Consumption: 8.5W

• Power Method Supported: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Voltage Range: 20-26VDC

• Gain: 27 dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: Atheros MIPS 74Kc, 720 MHz

• Memory: 128 MB DDR2, 16 MB Flash

• LEDs: (1) Power, (1) LAN, (4) WLAN

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Max. VSWR: 1.5:1

• Channel Sizes:

• PtP Mode: 10/20/30/40/50/60/80 Mhz

• PtMP Mode: 10/20/30/40 Mhz

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount (Kit Included)

• Wind Loading: 264.6 N @ 96 km/h

• Wind Survivability: 96 km/h

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

• Operating Frequency Worldwide: 5150 - 5875 MHz

•
