RouterBOARD 922UAGS-5HPacD with 802.11ac
SKU
RB922UAGS-5HPACD
94,66 €
76,96 €
720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 1000mW 802.11ac Two Chain 5Ghz wireless, RouterOS L4
Em Stock
Entrega prevista 11 de setembro

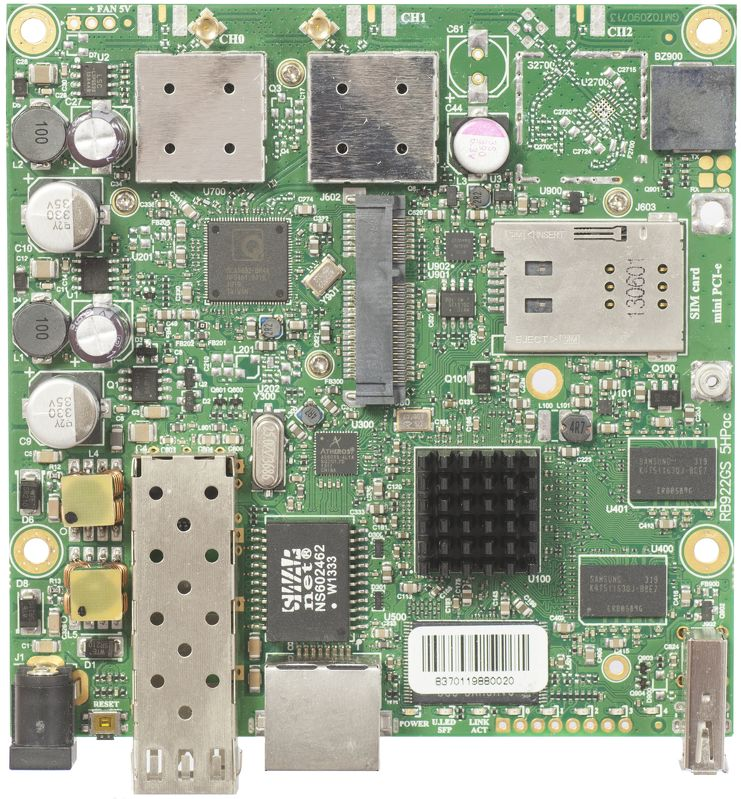

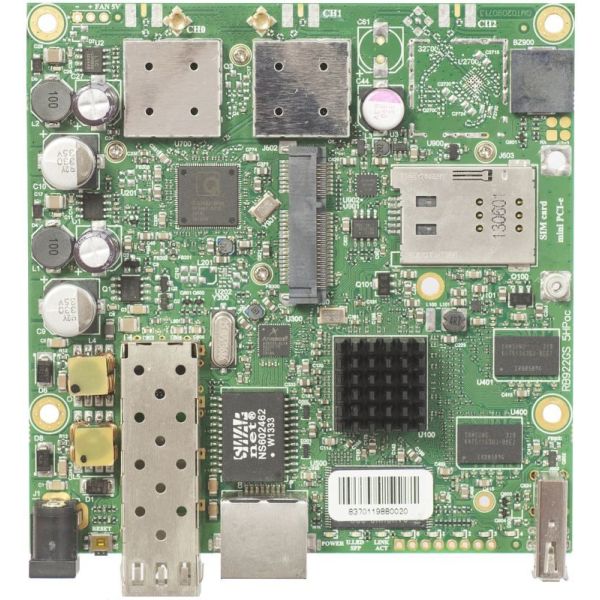

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.
Product specifications
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD |
| CPU nominal frequency | 720 MHz |
| SFP DDMI | yes |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 1 |
| Wireless chip model | QCA9882-BR4A-R |
| Wireless standards | 802.11a/n/ac |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | no |
| Supported input voltage | 8 V - 30 V |
| PoE out | No |
| PoE in | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 105x105mm |
| Operating System | RouterOS |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | QCA9557-AT4A-R |
| Max Power consumption | 17W |
| SFP ports | 1 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 2 |
| Serial port | None |
