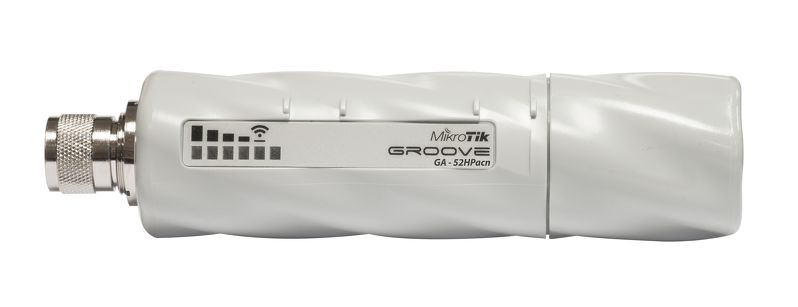

RouterBOARD GrooveA 52 ac Level 4

RBGROOVEGA-52HPACN

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

The Groove A (AP model) comes with Level 4 license and includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

Product Specification

• Product code: RBGrooveGA-52HPacn

• Architecture: MIPSBE

• CPU: QCA9556

• CPU core count: 1

• CPU nominal frequency: 720 MHz

• Dimensions: 177 x 44 x 44 mm

• RouterOS license: 4

• Operating System: RouterOS

• Size of RAM: 64 MB

• Storage size: 16 MB

• Storage type: FLASH

• MTBF: Approximately 100'000 hours at 25C

• Tested ambient temperature: -40°C to 70°C

Powering

• Number of DC inputs: 1 (PoE-IN)

• Max power consumption: 5 W

• FAN count: Passive

• PoE in: Passive PoE

• PoE in input Voltage: 10-30 V

Wireless specifications

• Wireless 5 GHz/2.4 GHz Max data rate: 433 Mbit/s

• Wireless 5 GHz/2.4 GHz number of chains: 1

• Wireless 5 GHz/2.4 GHz standards: 802.11b/g/n, 802.11a/n/ac

• Antenna gain dBi for 5 GHz/2.4 GHz: 6

• Wireless 5 GHz/2.4 GHz chip model: QCA9889

• Wireless 5 GHz/2.4 GHz generation: Wi-Fi 4

Ethernet

• 10/100/1000 Ethernet ports: 1

Other

• PCB temperature monitor: Yes

• Voltage Monitor: Yes

Certification & Approvals

• Certification: CE, FCC, IC, EAC, ROHS

• IP: IP55
